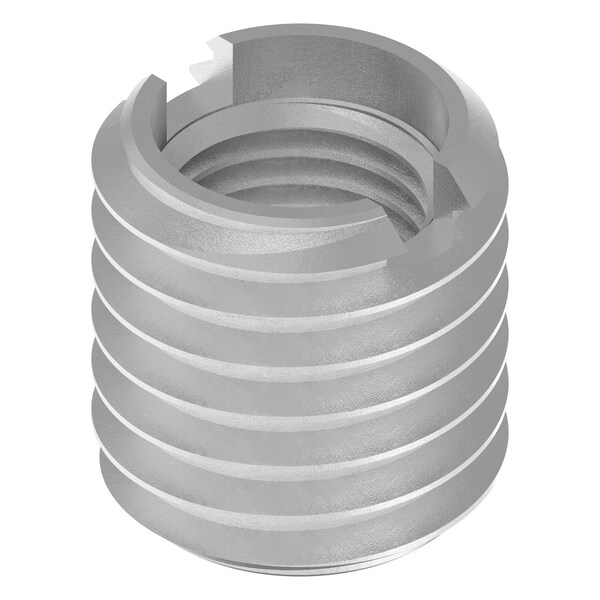

Standard Wall Self Locking Thread Insert, 7/16"-20 Int Thrd Sz, Steel
Mfr # EZ-329-720
Zoro # G809228138
CAD Available
product price: $100.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
7/16"-20
Material
Steel
Overall Length
21/32 in
Insert Diameter
5/8 in
External Thread Size
5/8"-11
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-329-720
Zoro #
G809228138
UPC #
847554010426
Country of Origin
United States
Dimensions
Internal Thread Size
7/16"-20
Overall Length
21/32 in
Insert Diameter
5/8 in
External Thread Size
5/8"-11
Drill Bit Size
17/32 in
Minimum Installation Depth
23/32 in
Compatible Tap Size
5/8"-11
Maximum Hole Diameter
0.531 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/8 In.-11, Drill Bit Size 17/32, External Thread Fit 2A, External Thread Size 5/8 In.-11, Finish Black Phosphate, Insert Diameter 5/8 in, Internal Thread Fit 2B, Internal Thread Size 7/16 In.-20, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.531 in, Minimum Installation Depth 23/32 in, Overall Length 21/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
