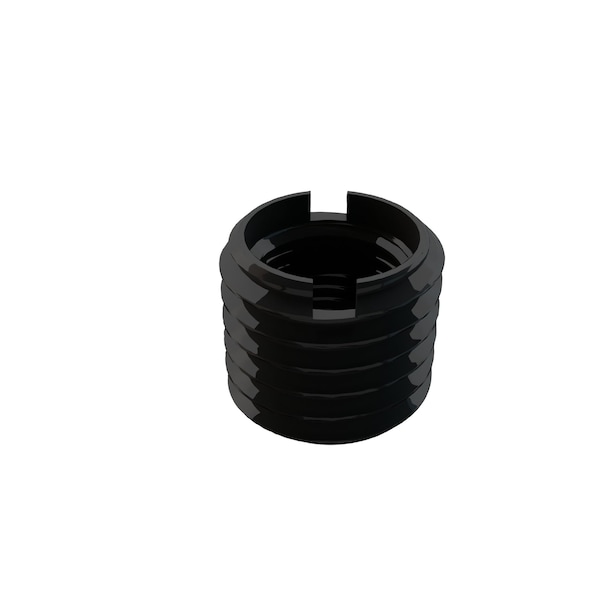

Standard Wall Self Locking Thread Insert, 9/16"-18 Int Thrd Sz, Steel
Mfr # EZ-329-918
Zoro # G909228182
CAD Available
product price: $102.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
9/16"-18
Material
Steel
Overall Length
21/32 in
Insert Diameter
3/4 in
External Thread Size
3/4"-10
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-329-918
Zoro #
G909228182
UPC #
847554010464
Country of Origin
United States
Dimensions
Internal Thread Size
9/16"-18
Overall Length
21/32 in
Insert Diameter
3/4 in
External Thread Size
3/4"-10
Drill Bit Size
21/32 in
Minimum Installation Depth
3/4 in
Compatible Tap Size
3/4"-10
Maximum Hole Diameter
0.656 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/4 In.-10, Drill Bit Size 21/32, External Thread Fit 2A, External Thread Size 3/4 In.-10, Finish Black Phosphate, Insert Diameter 3/4 in, Internal Thread Fit 2B, Internal Thread Size 9/16 In.-18, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.656 in, Minimum Installation Depth 3/4 in, Overall Length 21/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
