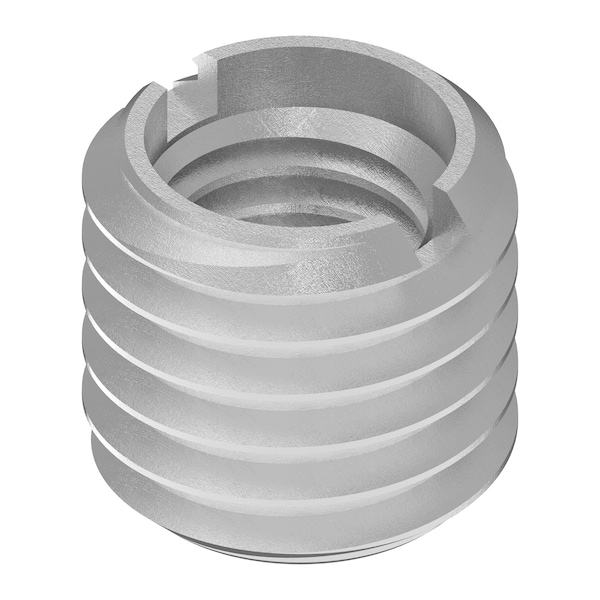

Standard Wall Self Locking Thread Insert, M10-1.50 Int Thrd Sz, Steel
Mfr # EZ-650-10
Zoro # G509228247
CAD Available
product price: $78.59
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Internal Thread Size
M10-1.50
Material
Steel
Overall Length
13 mm
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-650-10
Zoro #
G509228247
UPC #
847554010716
Country of Origin
United States
Dimensions
Internal Thread Size
M10-1.50
Overall Length
13 mm
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
31/64 in
Minimum Installation Depth
19/32 in
Compatible Tap Size
9/16"-12
Maximum Hole Diameter
0.484 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64, External Thread Fit 2A, External Thread Size 9/16 In.-12, Finish Black Phosphate, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size M10-1.50, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.484 in, Minimum Installation Depth 19/32 in, Overall Length 13 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
