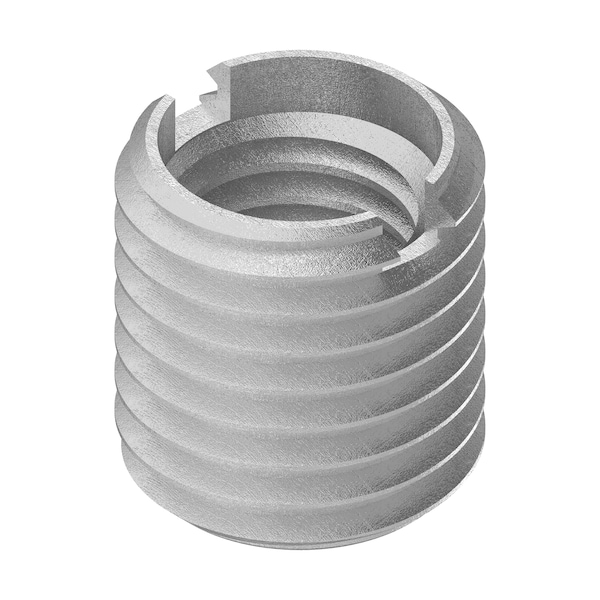

Standard Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, 316 Stainless Steel
Mfr # 416-12
Zoro # G209228172
CAD Available
product price: $11.99
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
17 mm
Insert Diameter
16 mm
Wall Type
Standard Wall
Thread Type
Metric Internal/Metric External
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
416-12
Zoro #
G209228172
UPC #
847554011713
Country of Origin
United States
Dimensions
Internal Thread Size
M12-1.75
Overall Length
17 mm
Insert Diameter
16 mm
External Thread Size
M16-2.00
Drill Bit Size
14 mm
Minimum Installation Depth
19 mm
Compatible Tap Size
M16-2.00
Maximum Hole Diameter
14 mm
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M16-2.00, Drill Bit Size 14mm, External Thread Fit 6G, External Thread Size M16-2.00, Finish Plain, Insert Diameter 16 mm, Internal Thread Fit 6H, Internal Thread Size M12-1.75, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 14 mm, Minimum Installation Depth 19 mm, Overall Length 17 mm, System of Measurement Metric, Thread Direction Right Hand, Thread Type Coarse, Wall Type Standard Wall
