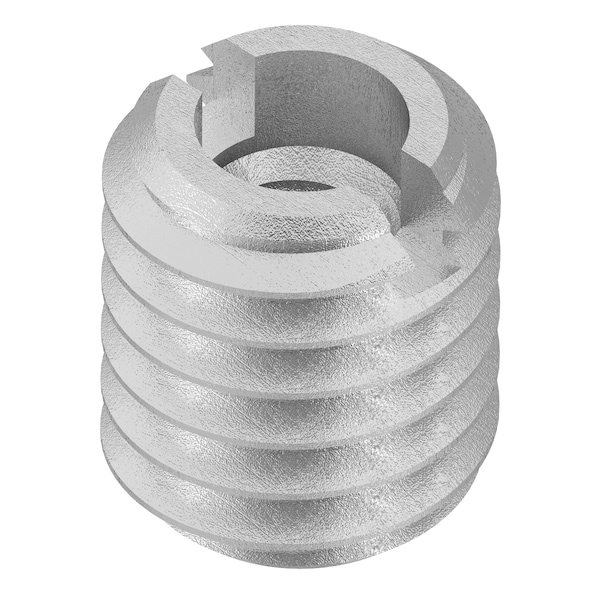

Standard Wall Self Locking Thread Insert, M3-0.50 Int Thrd Sz, 316 Stainless Steel
Mfr # 416-3
Zoro # G009228129
CAD Available
product price: $9.29
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
7 mm
Insert Diameter
6 mm
Wall Type
Standard Wall
Thread Type
Metric Internal/Metric External
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
416-3
Zoro #
G009228129
UPC #
847554009956
Country of Origin
United States
Dimensions
Internal Thread Size
M3-0.50
Overall Length
7 mm
Insert Diameter
6 mm
External Thread Size
M6-1.00
Drill Bit Size
5.1 mm
Minimum Installation Depth
7 51/64 mm
Compatible Tap Size
M6-1.00
Maximum Hole Diameter
5.1 mm
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M6-1.00, Drill Bit Size 5.1mm, External Thread Fit 6G, External Thread Size M6-1.00, Finish Plain, Insert Diameter 6 mm, Internal Thread Fit 6H, Internal Thread Size M3-0.50, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 5.1 mm, Minimum Installation Depth 7 51/64 mm, Overall Length 7 mm, System of Measurement Metric, Thread Direction Right Hand, Thread Type Coarse, Wall Type Standard Wall
