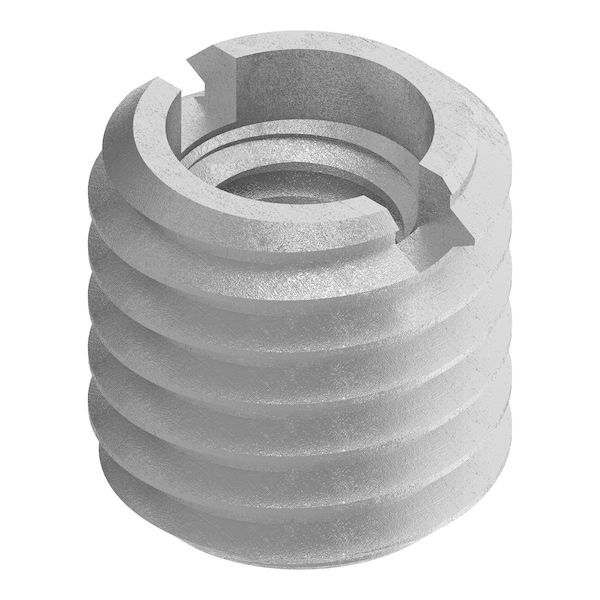

Standard Wall Self Locking Thread Insert, M6-1.00 Int Thrd Sz, 316 Stainless Steel
Mfr # 416-6
Zoro # G209228158
CAD Available
product price: $10.25
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
10 mm
Insert Diameter
10 mm
Wall Type
Standard Wall
Thread Type
Metric Internal/Metric External
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
416-6
Zoro #
G209228158
UPC #
847554009987
Country of Origin
United States
Dimensions
Internal Thread Size
M6-1.00
Overall Length
10 mm
Insert Diameter
10 mm
External Thread Size
M10-1.50
Drill Bit Size
8.6 mm
Minimum Installation Depth
12 mm
Compatible Tap Size
M10-1.50
Maximum Hole Diameter
8.6 mm
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M10-1.50, Drill Bit Size 8.6mm, External Thread Fit 6G, External Thread Size M10-1.50, Finish Plain, Insert Diameter 10 mm, Internal Thread Fit 6H, Internal Thread Size M6-1.00, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 8.6 mm, Minimum Installation Depth 12 mm, Overall Length 10 mm, System of Measurement Metric, Thread Direction Right Hand, Thread Type Coarse, Wall Type Standard Wall
