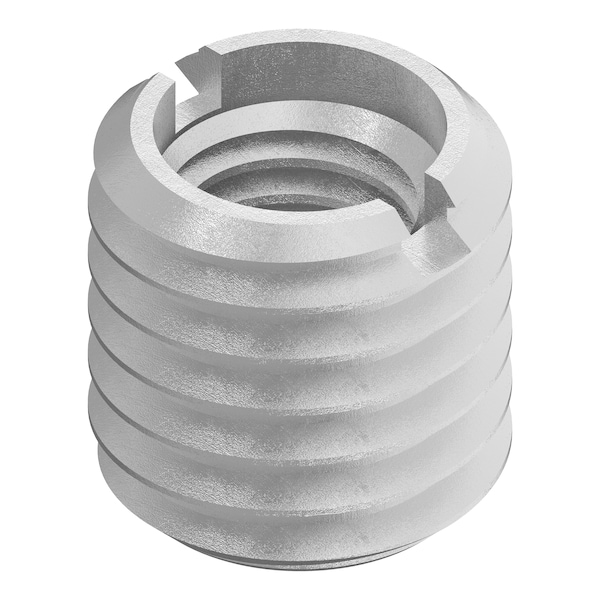

Standard Wall Self Locking Thread Insert, M8-1.25 Int Thrd Sz, 316 Stainless Steel
Mfr # 416-8
Zoro # G409228385
CAD Available
product price: $13.29
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
12 mm
Insert Diameter
12 mm
Wall Type
Standard Wall
Thread Type
Metric Internal/Metric External
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
416-8
Zoro #
G409228385
UPC #
847554009994
Country of Origin
United States
Dimensions
Internal Thread Size
M8-1.25
Overall Length
12 mm
Insert Diameter
12 mm
External Thread Size
M12-1.75
Drill Bit Size
10.4 mm
Minimum Installation Depth
14 1/2 mm
Compatible Tap Size
M12-1.75
Maximum Hole Diameter
10.4 mm
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size M12-1.75, Drill Bit Size 10.4mm, External Thread Fit 6G, External Thread Size M12-1.75, Finish Plain, Insert Diameter 12 mm, Internal Thread Fit 6H, Internal Thread Size M8-1.25, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 10.4 mm, Minimum Installation Depth 14 1/2 mm, Overall Length 12 mm, System of Measurement Metric, Thread Direction Right Hand, Thread Type Coarse, Wall Type Standard Wall
