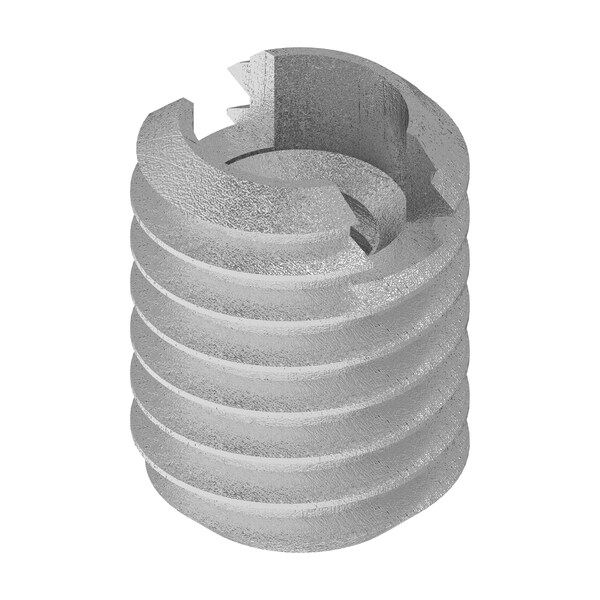

Standard Wall Self Locking Thread Insert, No. 4-40 Int Thrd Sz, 316 Stainless Steel
Mfr # 316-004
Zoro # G009228334
CAD Available
product price: $8.65
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
1/4 in
Insert Diameter
3/16 in
Wall Type
Standard Wall
Thread Type
Coarse, Fine
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
316-004
Zoro #
G009228334
UPC #
847554011676
Country of Origin
United States
Dimensions
Internal Thread Size
#4-40
Overall Length
1/4 in
Insert Diameter
3/16 in
External Thread Size
#10-32
Drill Bit Size
5/32 in
Minimum Installation Depth
9/32 in
Compatible Tap Size
#10-32
Maximum Hole Diameter
0.156 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size #10-32, Drill Bit Size 5/32, External Thread Fit 2A, External Thread Size #10-32, Finish Plain, Insert Diameter 3/16 in, Internal Thread Fit 2B, Internal Thread Size #4-40, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 0.156 in, Minimum Installation Depth 9/32 in, Overall Length 1/4 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine, Wall Type Standard Wall
