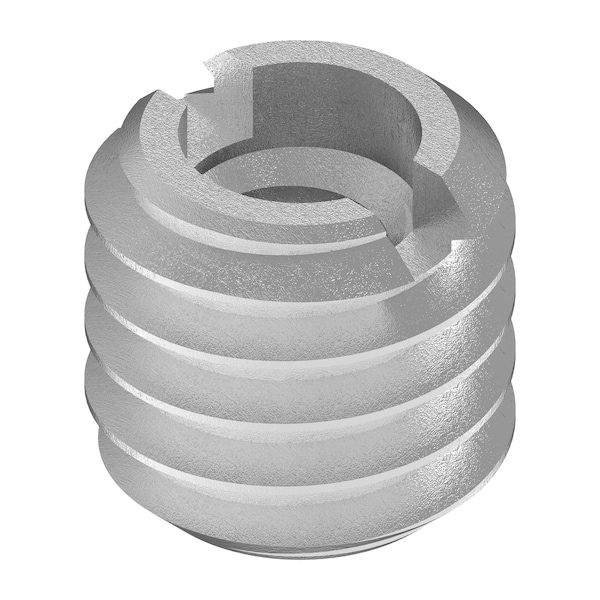

Standard Wall Self Locking Thread Insert, No. 8-32 Int Thrd Sz, Steel
Mfr # EZ-329-008
Zoro # G709228313
CAD Available
product price: $29.19
/eaKey Features
CAD Drawing
Internal Thread Size
#8-32
Material
Steel
Overall Length
19/64 in
Insert Diameter
5/16 in
External Thread Size
5/16"-18
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-329-008
Zoro #
G709228313
UPC #
847554010327
Country of Origin
United States
Dimensions
Internal Thread Size
#8-32
Overall Length
19/64 in
Insert Diameter
5/16 in
External Thread Size
5/16"-18
Drill Bit Size
F
Minimum Installation Depth
7/16 in
Maximum Hole Diameter
0.257 in
Compatible Tap Size
5/16"-18
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 5/16 In.-18, Drill Bit Size F, External Thread Fit 2A, External Thread Size 5/16 In.-18, Finish Black Phosphate, Insert Diameter 5/16 in, Internal Thread Fit 2B, Internal Thread Size #8-32, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.257 in, Minimum Installation Depth 7/16 in, Overall Length 19/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
