  11. Stem Caster, 120 lb. Load, Gray Wheel

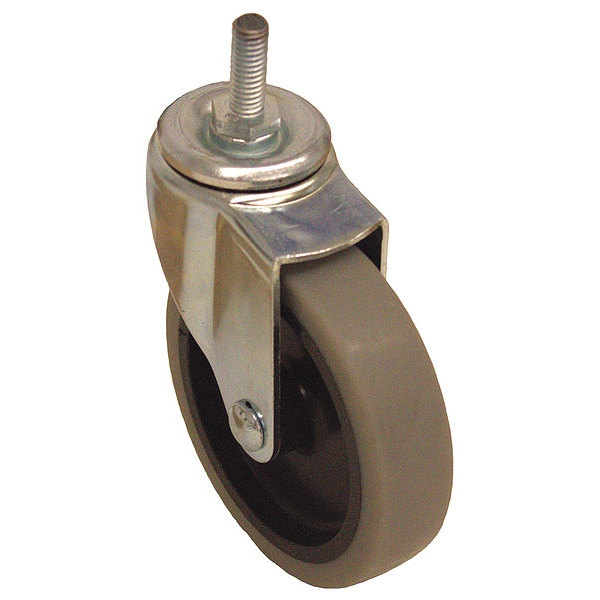

Zoro Select Stem Caster, 120 lb. Load, Gray Wheel P5S-UP030G-ST3 - main

Stem Caster, 120 lb. Load, Gray Wheel

  • Mfr # P5S-UP030G-ST3

  • Zoro # G3323733

product price: $4.99
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Load Rating
120 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-UP030G-ST3
Zoro #
G3323733
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
3 1/2 in
Stem Length
1 in
Thread Size
3/8"-16
Overall Height
3-1/2 in
Stem Dia.
3/8 in
Wheel Dia.
3 in
Caster Thread Size
3/8"-16
Caster Stem Size
3/8"-16 x 1 in
Swivel Radius
2-5/16 in
Tire Thickness
5/16 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
120 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Frame Finish
Zinc Plated
Caster Load Rating Range
Light Duty
Caster Core Material
Polypropylene
Core Color
Gray
Standards
RoHS, ICWM
Caster Wheel/Tread Material
Polyurethane
Caster Temp. Range Available
Yes
Caster Wheel Bearings
Plain
Caster Brake Included
No
Wheel Color
Gray
Features
Floor Protective
Caster Raceway
Double Ball
Caster Product Group
Swivel Caster
Caster Sub-Type
Swivel
Caster Temp. Range
-15 Degrees To 160 Degrees F
Caster Swivel Lock Type
No Lock Included
Caster Wheel Shape
Standard
Wheel Core Material
Polypropylene
Operating Temperature Range
-15 Degrees to 160 Degrees F
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
ESD Conductive
No
Extended Lead
No
Wheel/Tread Hardness
50-60 Shore D
Tread
Standard
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Threaded Stem
Includes Thread Guards
No
System of Measurement
Inch
Caster Break Type
No Brake Included
Series
P5 Series
Load Capacity
120 lb
Tread Color
Gray
Operating Temperature - Maximum
160 Degrees F
Caster Features
Corrosion-Resistant, Quiet-Roll
Wheel Core Type
Solid
Operating Temperature - Minimum
-15 Degrees F
For Surface Type
Tile, Vinyl, Wood
Load Capacity - Maximum
120 lb
Wheel Hardness Rating
60 Shore D

Description

Stem Caster, Swivel Caster, 120 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 7/8 in Wheel Width, Polyurethane Wheel/Tread Material, 3 1/2 in Mounting Height, Plain, 3/8 In.-16 x 1 in Caster Stem Size, Threaded, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
