  11. Stem Caster, 165 lb. Ld, 27/32" Stem Dia.

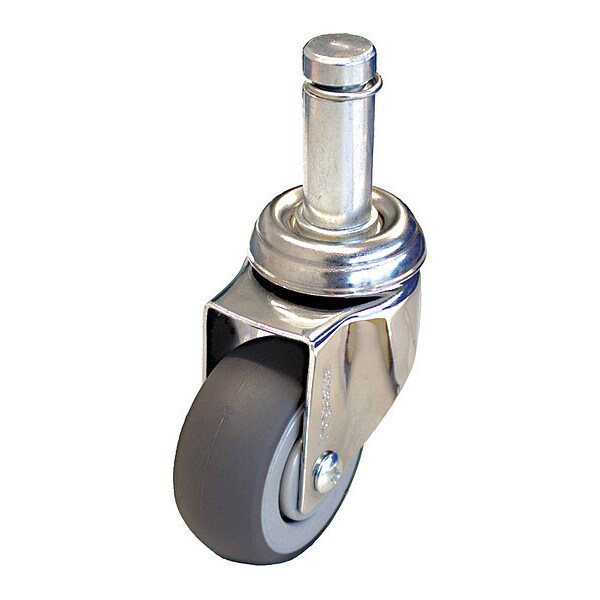

Zoro Select Stem Caster, 165 lb. Ld, 27/32" Stem Dia. P14S-RP030K-SG7 - main

Stem Caster, 165 lb. Ld, 27/32" Stem Dia.

  • Mfr # P14S-RP030K-SG7

  • Zoro # G1625843

product price: $42.29
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
4 7/16 in
Load Rating
165 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P14S-RP030K-SG7
Zoro #
G1625843
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
4 7/16 in
Stem Length
2-1/8 in
Overall Height
4-5/16 in
Wheel Dia.
3 in
Stem Dia.
0.843 in
Caster Stem Size
27/32 in x 2-1/8 in
Swivel Radius
2-15/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
165 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Wheel Color
Gray
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Wheel Shape
Standard
Load Capacity
165 lb
Includes
Thread Guards
Caster Core Material
Polypropylene
Core Color
Gray
Caster Load Rating Range
Light Duty
System of Measurement
Inch
Replacement Wheel
Mfr. No. P-RP-030x013/031K
Caster Temp. Range Available
Yes
Features
Floor Protection, Noiseless Stem
Frame Finish
Zinc Plated
Caster Swivel Lock Type
No Lock Included
Standards
RoHS, ICWM
Caster Temp. Range
-4 Degrees To 140 Degrees F
Caster Sub-Type
Swivel
Caster Raceway
Double Ball
Caster Wheel Bearings
Precision Ball
Caster Product Group
Swivel Caster
Caster Brake Included
No
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Tread Color
Gray
Extended Lead
No
Series
P14 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Hardness
85-95 Shore A
Caster Break Type
No Brake Included
Caster Mounting Type
Grip Ring Stem
Includes Thread Guards
Yes
ESD Conductive
No
Tread
Standard
Wheel Hardness Rating
70 Shore A
Operating Temperature - Minimum
-20 Degrees F
Compatible Wheel Manufacturer Model Number
P-RP-030X013/031K
Load Capacity - Maximum
165 lb
Operating Temperature - Maximum
180 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
For Surface Type
Tile, Vinyl, Wood
Wheel Core Type
Solid

Description

Stem Caster, Swivel Caster, 165 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 4 7/16 in Mounting Height, Ball, 27/32 in x 2-1/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
