Zoro Select

Stem Caster, 165 lb. Ld, 27/32" Stem Dia.

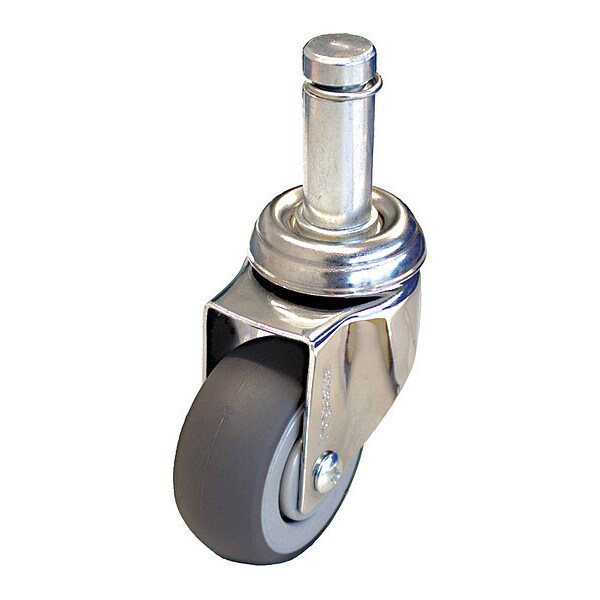

Zoro Select Stem Caster, 165 lb. Ld, 27/32" Stem Dia. P14S-RP030K-SG7
Hover or click to zoom Tap to zoom
  • Item: Swivel Stem Caster
  • Caster Stem Type: Friction Ring Stem
  • Tread Shape: Standard
  • Wheel Width: 1-1/4 in
  • Mounting Height: 4 7/16 in
  • Load Rating: 165 lb
  • Load Rating Range: -
  • Wheel/Tread Material: Thermoplastic Rubber
See full product details
$31.49
Orders over $75 ship free.

Subtotal: $31.49

Zoro Select #P14S-RP030K-SG7 Specifications

  • Item: Swivel Stem Caster
  • Caster Stem Type: Friction Ring Stem
  • Tread Shape: Standard
  • Wheel Width: 1-1/4 in
  • Mounting Height: 4 7/16 in
  • Load Rating: 165 lb
  • Load Rating Range: -
  • Wheel/Tread Material: Thermoplastic Rubber
  • Application: Retail, Industrial, Commercial
  • Stem Length: 2-1/8 in
  • Non-Marking: Yes
  • Caster Brake Type: No Brake Included
  • Caster Frame Material: Steel
  • Wheel Bearing Type: Precision Ball
  • Number of Wheels: 1
  • Wheel Color: Gray
  • Overall Height: 4-5/16 in
  • Caster Wheel/Tread Material: Thermoplastic Rubber
  • Caster Wheel Shape: Standard
  • Load Capacity: 165 lb
  • Includes: Thread Guards
  • Caster Core Material: Polypropylene
  • Core Color: Gray
  • Caster Load Rating Range: Light Duty
  • System of Measurement: Inch
  • Replacement Wheel: Mfr. No. P-RP-030x013/031K
  • Caster Temp. Range Available: Yes
  • Features: Floor Protection, Noiseless Stem
  • Wheel Dia.: 3 in
  • Frame Finish: Zinc Plated
  • Caster Swivel Lock Type: No Lock Included
  • Standards: RoHS, ICWM
  • Caster Temp. Range: -4 Degrees To 140 Degrees F
  • Caster Sub-Type: Swivel
  • Caster Raceway: Double Ball
  • Caster Wheel Bearings: Precision Ball
  • Caster Product Group: Swivel Caster
  • Caster Brake Included: No
  • Stem Dia.: 0.843 in
  • Operating Temperature Range: -20 Degrees to 180 Degrees F
  • Swivel Raceway Type: Double Ball
  • Wheel Core Material: Polypropylene
  • Swivel Lock Type: No Lock Included
  • Caster Stem Size: 27/32 in x 2-1/8 in
  • Wheel/Tread Color: Gray
  • Tread Color: Gray
  • Extended Lead: No
  • Series: P14 Series
  • Resistant To: High Chemical Resistance To Many Aggressive Substances
  • Wheel/Tread Hardness: 85-95 Shore A
  • Caster Break Type: No Brake Included
  • Caster Mounting Type: Grip Ring Stem
  • Includes Thread Guards: Yes
  • ESD Conductive: No
  • Tread: Standard
  • Swivel Radius: 2-15/16 in
  • Country of Origin (subject to change): China

Description

Quiet-Roll Friction-Ring Stem Caster, Swivel Caster, 165 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Thermoplastic Rubber Wheel/Tread Material, 4 7/16 in Mounting Height, Precision Ball, 27/32 in x 2-1/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
