Zoro Select Stem Caster, 300 lb. Load Rating, Swivel P12S-UP050B-Q - main

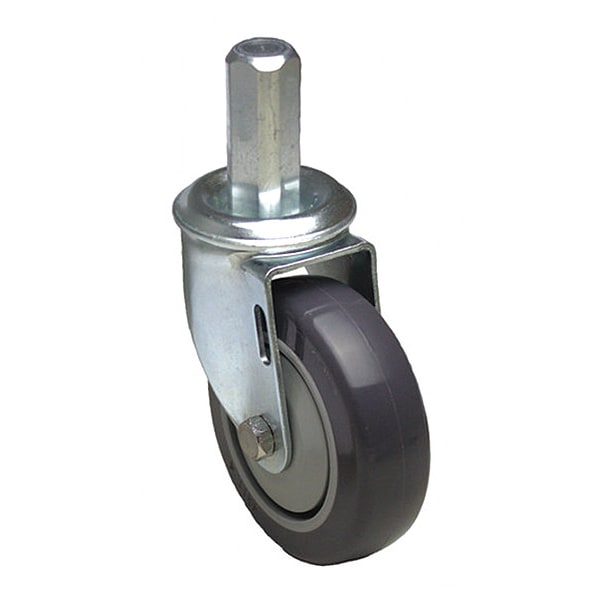

Stem Caster, 300 lb. Load Rating, Swivel

  • Mfr # P12S-UP050B-Q

  • Zoro # G1617495

product price: $23.79
/ea

Key Features

Caster Stem Type
Square Stem
Tread Shape
Standard
Wheel Width
1-1/4 in
Mounting Height
6 in
Load Rating
300 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12S-UP050B-Q
Zoro #
G1617495
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1-1/4 in
Mounting Height
6 in
Stem Length
2 in
Stem Dia.
0.865 in
Wheel Dia.
5 in
Overall Height
6-1/16 in
Caster Stem Size
7/8 in x 2 in
Swivel Radius
4 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster
Caster Stem Type
Square Stem
Tread Shape
Standard
Load Rating
300 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Caster Wheel/Tread Material
Polyurethane
Caster Load Rating Range
Light Duty
Core Color
Gray
Caster Temp. Range Available
Yes
Caster Wheel Bearings
Annular Ball
Standards
RoHS, ICWM, NSF
Caster Swivel Lock Type
No Lock Included
Includes
Complete Caster
System of Measurement
Inch
Caster Sub-Type
Swivel
Replacement Wheel
Mfr. No. P-UP-050x013/038B
Caster Raceway
Double Ball
Caster Product Group
Swivel Caster
Caster Wheel Shape
Standard
Frame Finish
Zinc Plated
Caster Brake Included
No
Caster Temp. Range
-15 Degrees To 160 Degrees F
Wheel Color
Gray
Caster Core Material
Polypropylene
Load Capacity
325 lb
Swivel Lock Type
No Lock Included
Operating Temperature Range
-40 Degrees to 180 Degrees F
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
Tread Color
Gray
Caster Mounting Type
Octagon Stem
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12 Series
Wheel/Tread Hardness
50-60 Shore D
Includes Thread Guards
No
Extended Lead
No
ESD Conductive
No
Caster Break Type
No Brake Included
Tread
Standard
Operating Temperature - Maximum
180 Degrees F
For Surface Type
Tile, Vinyl, Wood
Compatible Wheel Manufacturer Model Number
P-UP-050X013/038B
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Quiet-Roll
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
300 lb
Operating Temperature - Minimum
-40 Degrees F

Description

Stem Caster, Swivel Caster, 300 lb Load Rating, 300 to 999 lb, 5 in Wheel Dia., 1 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 6 in Mounting Height, Ball, 7/8 in x 2 in Caster Stem Size, Square, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
