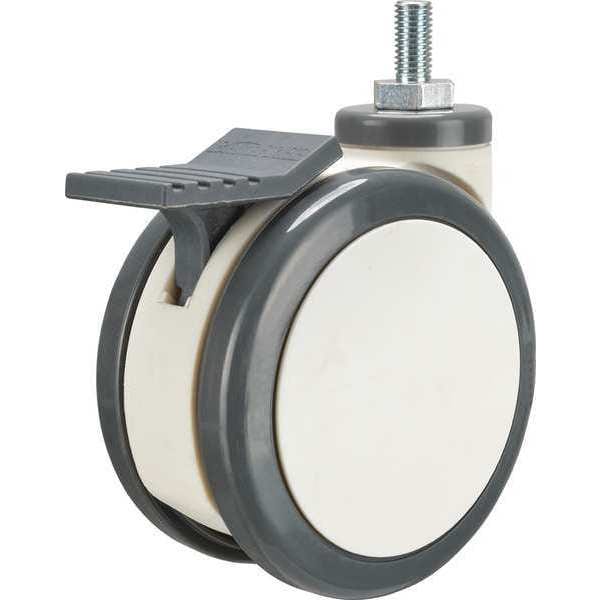

Zoro Select Stem Caster, Light-Duty, 5-3/4" Overall H P18S-UP125K-ST8-TB-001 - main

Stem Caster, Light-Duty, 5-3/4" Overall H

  • Mfr # P18S-UP125K-ST8-TB-001

  • Zoro # G0232169

product price:  $54.59
/ea

Key Features

Caster Stem Type
Threaded Stem
Tread Shape
Standard
Wheel Width
80 mm
Mounting Height
155 mm
Load Rating
220 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P18S-UP125K-ST8-TB-001
Zoro #
G0232169
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
80 mm
Mounting Height
155 mm
Stem Length
20 mm
Thread Size
M12x1.75
Caster Thread Size
M12
Stem Dia.
15/32 in
Overall Height
5 3/4 in
Wheel Dia.
4 15/16 in
Tire Thickness
8 mm
Caster Stem Size
M12-25 x 25/32 in
Swivel Radius
103.5 mm

Details

Item
Swivel Stem Caster With Total-Lock
Caster Stem Type
Threaded Stem
Tread Shape
Standard
Load Rating
220 lb
Wheel/Tread Material
Polyurethane
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Non-Marking
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Nylon
Wheel Bearing Type
Ball
Number of Wheels
2
Frame Finish
Unfinished
Caster Brake Included
Yes
Core Color
White
Caster Raceway
Precision Ball
Caster Swivel Lock Type
Total-Lock
Standards
ANSI ICWM
Caster Wheel Bearings
Precision Ball
Caster Wheel/Tread Material
Polyurethane
Caster Load Rating Range
Light Duty
Caster Temp. Range
-15 Degrees To 160 Degrees F
Wheel Color
Gray
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Includes
Dust Cover, Thread Guards
Caster Product Group
Swivel Caster With Total-Lock
Features
Maintenance Free
Caster Wheel Shape
Twin Wheel
Caster Core Material
Polypropylene
System of Measurement
Metric
Tread
Standard
Tread Color
Black
Caster Mounting Type
Threaded Stem
Swivel Lock Type
Total Lock
Operating Temperature Range
20 Degrees to 176 Degrees F
Wheel Core Material
Plastic
Swivel Raceway Type
Single Ball
Wheel/Tread Color
Gray
Extended Lead
No
Load Capacity
275 lb
Series
Pegasus 18
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel/Tread Hardness
50-60 Shore D
Caster Break Type
Total Lock
Includes Thread Guards
No
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
220 lb
Caster Features
Corrosion-Resistant, Easy Turn, Maintenance-Free
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Maximum
176 Degrees F
Frame Color
White
Operating Temperature - Minimum
20 Degrees F
Wheel Core Type
Solid

Description

Stem Caster, Swivel Caster with Total Lock, 220 lb Load Rating, 0 to 299 lb, 4 15/16 in Wheel Dia., 3 1/4 in Wheel Width, Polyurethane Wheel/Tread Material, 155 mm Mounting Height, Ball, M12-25 x 25/32 in Caster Stem Size, Threaded, Nylon Caster Frame Material, Unfinished Frame Finish, Yes Non-Marking, 2 Number of Wheels
