Shop ZORO SELECT

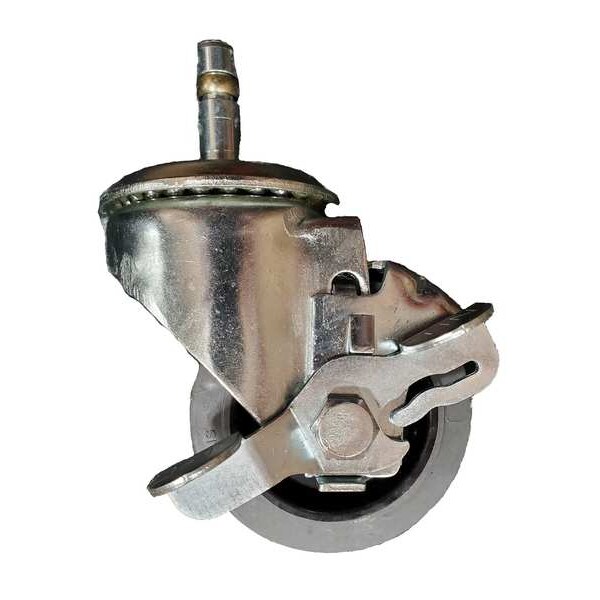

Stem Caster, Load Rating 200 lb., 4-1/8" H

  • Mfr # P12S-PRP030B-SG1-WB-EL

  • Zoro # G1626099

product price:  $25.29
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
1 1/4 in
Mounting Height
4 in
Load Rating
200 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12S-PRP030B-SG1-WB-EL
Zoro #
G1626099
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Height
4 in
Stem Length
1 7/16 in
Stem Dia.
7/16 in
Overall Height
4-1/8 in
Wheel Dia.
3 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
2-13/16 in
Tire Thickness
3/8 in

Details

Item
Swivel Stem Caster With Brake
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
200 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
Yes
Caster Brake Type
Side Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Number of Wheels
1
Replacement Wheel
Mfr. No. P-PRP-030x013/038B-EL
Core Color
Beige
Caster Core Material
Polypropylene
Caster Brake Included
Yes
Caster Product Group
Swivel Caster With Brake
Frame Finish
Zinc Plated
Caster Swivel Lock Type
No Lock Included
Caster Wheel Shape
Standard
Caster Raceway
Double Ball
Caster Wheel/Tread Material
Thermoplastic Rubber
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Includes
Strap Type Brake, Electrically Conductive Tread
Features
Electrically Conductive, Noise Reduction
Caster Wheel Bearings
Annular Ball
Standards
DIN EN 12530
Caster Load Rating Range
Light Duty
Wheel Color
Gray
Caster Temp. Range
-4 Degrees To 140 Degrees F
Swivel Lock Type
No Lock Included
Wheel Core Material
Plastic
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Gray
Load Capacity
200 lb
Series
Pegasus 12
Caster Mounting Type
Grip Ring Stem
Tread Color
Gray
Caster Break Type
Strap Type Brake
System of Measurement
Inch
Extended Lead
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Includes Thread Guards
No
Tread
Standard
ESD Conductive
Yes
Wheel/Tread Hardness
85-95 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance-Free, Quiet-Roll
Wheel Hardness Rating
70 Shore A
Load Capacity - Maximum
200 lb
Operating Temperature - Minimum
-20 Degrees F
Compatible Wheel Manufacturer Model Number
P-PRP-030X013/038B-EL
For Surface Type
Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Wheel Core Type
Solid

Description

Stem Caster, Swivel Caster with Brake, 200 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 1 1/4 in Wheel Width, Rubber Wheel/Tread Material, 4 in Mounting Height, Ball, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
