  6. Stem Caster, Load Rating 95 lb., 3-1/16" H

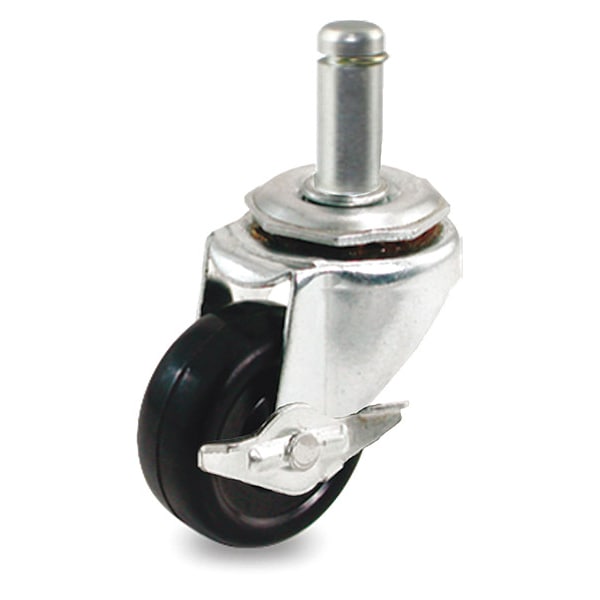

Zoro Select Stem Caster, Load Rating 95 lb., 3-1/16" H P5S-R025G-SG1-SB - main

Stem Caster, Load Rating 95 lb., 3-1/16" H

  • Mfr # P5S-R025G-SG1-SB

  • Zoro # G3323995

product price:  $4.29
/ea

Key Features

Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Wheel Width
13/16 in
Mounting Height
3 1/8 in
Load Rating
95 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P5S-R025G-SG1-SB
Zoro #
G3323995
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
13/16 in
Mounting Height
3 1/8 in
Stem Length
1-7/16 in
Overall Height
3 1/16 in
Wheel Dia.
2-1/2 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1-7/16 in
Swivel Radius
2-3/16 in

Details

Item
Swivel Stem Caster With Brake
Caster Stem Type
Friction Ring Stem
Tread Shape
Standard
Load Rating
95 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
Side Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain
Number of Wheels
1
Caster Wheel Bearings
Plain
Standards
DIN EN 12530
Caster Core Material
Rubber
Features
Noise Reduction
Core Color
Black
Caster Wheel Shape
Standard
Caster Product Group
Swivel Caster With Brake
Caster Wheel/Tread Material
Solid Rubber
Caster Raceway
Double Ball
Caster Swivel Lock Type
No Lock Included
Caster Load Rating Range
Light Duty
Caster Temp. Range
-20 Degrees To 125 Degrees F
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Brake Included
Yes
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Includes
Pinch Type Brake
Wheel Core Material
Rubber
Operating Temperature Range
-20 Degrees to 180 Degrees F
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Black
Series
Pegasus 5
Caster Mounting Type
Grip Ring Stem
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
System of Measurement
Inch
Extended Lead
No
Includes Thread Guards
No
Caster Break Type
Pinch Type
Load Capacity
95 lb
Wheel/Tread Hardness
70-85 Shore A
ESD Conductive
No
Tread Color
Black
Tread
Standard
Wheel Hardness Rating
80 Shore A
Wheel Core Type
Solid
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Load Capacity - Maximum
95 lb
For Surface Type
Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Quiet-Roll

Description

Stem Caster, Swivel Caster with Brake, 95 lb Load Rating, 0 to 299 lb, 2 1/2 in Wheel Dia., 7/8 in Wheel Width, Rubber Wheel/Tread Material, 3 1/8 in Mounting Height, Plain, 7/16 in x 1-7/16 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, No Non-Marking, 1 Number of Wheels
