Shop ZORO SELECT

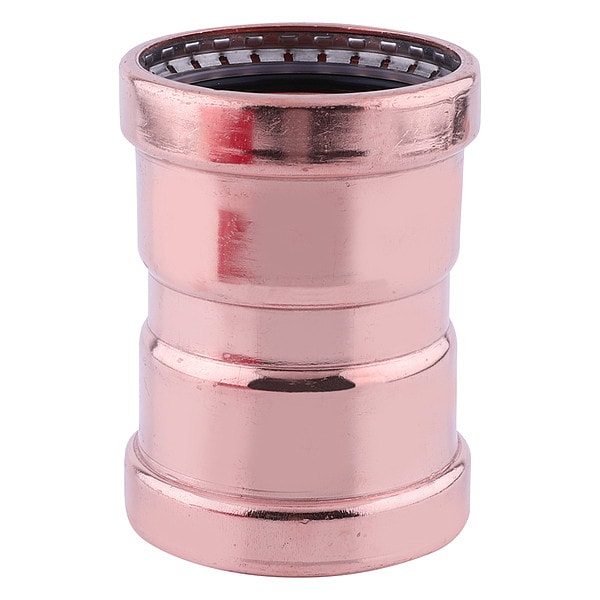

Strt, Copper, Press-fit 4", Press-fit 4"

  • Mfr # 816YK7

  • Zoro # G314547762

product price:
$
170.99
/ea
Free Shipping & Returns

Key Features

Specific Fitting Shape
Straight Coupling
Standards
IAPMO Z1117, NSF 372, NSF 61
Maximum Operating Temperature
250 Degrees F
Fitting Side A Tube Outer Diameter
4 1/8 in
Fitting Side B Connection Type
Press-Fit
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
816YK7
Zoro #
G314547762
UPC #
-
Country of Origin
China

Dimensions

Fitting Side A Tube Outer Diameter
4 1/8 in
Fitting Side B Tube Outer Diameter
4 1/8 in
Overall Length
5 25/32 in
Fitting Side A Copper Tube Size
4 in
Fitting Side B Copper Tube Size
4 in
Required Tool Jaw Size
4 in
Fitting Side 1 Tube Outer Diameter
4 1/8 in
Fitting Side 2 Tube Outer Diameter
4 1/8 in
Fitting Side 1 Copper Tube Size
4 in
Fitting Side 2 Copper Tube Size
4 in
Wire Rope Length
5 25/32 in
Length
5 25/32 in

Details

Item
Crimp Coupling Fitting
Specific Fitting Shape
Straight Coupling
Standards
IAPMO Z1117, NSF 372, NSF 61
Maximum Operating Temperature
250 Degrees F
Fitting Side B Connection Type
Press-Fit
Color
Copper
Fitting Material
Copper
O-Ring Material
EPDM
Material Grade
C12200
Application
Potable Water
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Vacuum Rating
-24.5 inHg @ 68 Degrees F
Resistance Properties
Corrosion-Resistant
Fitting Side A Connection Type
Press-Fit
Finish/Coating
Polished
Minimum Operating Temperature
0 Degrees F
Compatible Copper Tube Type
Type K, Type L, Type M
Maximum Operating Pressure
200 psi
Includes Center Stop
Rolled Center Stop
Compatible Tube Material
Copper
Compatible Tool Brand
Milwaukee, Ridgid, RMES, Rothenberger
Finish
Polished
Operating Temperature - Minimum
0 Degrees F
Operating Pressure - Maximum
200 psi
Connector Type
Coupling
Operating Temperature - Maximum
250 Degrees F
Fitting Shape
Straight
Center Stop Type
Rolled Center Stop
Fitting Side 1 Connection Type
Press-fit
Fitting Side 2 Connection Type
Press-fit
For Media Type
Potable Water

Description

Crimp Coupling Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 4 in, Fitting Side B Copper Tube Size 4 in, Fitting Material Copper, Fitting Side A Pipe Size Not Applicable, Fitting Side B Pipe Size Not Applicable, Material Grade C12200, O-Ring Material EPDM, Specific Fitting Shape Straight Coupling, Finish/Coating Polished, Fitting Side A Tube Outer Diameter 4 1/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
