  11. Swivel NSF-Listed Plate Caster, 300 lb., Delrin, Gray

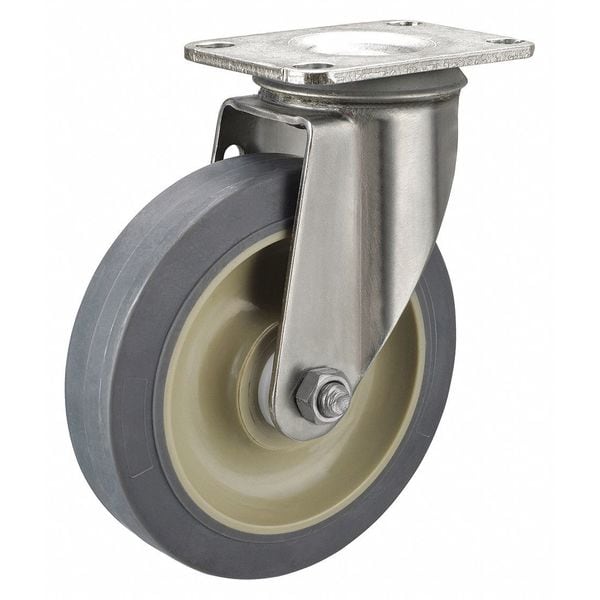

Zoro Select Swivel NSF-Listed Plate Caster, 300 lb., Delrin, Gray P12SX-PRP040D-12-SS - main

Swivel NSF-Listed Plate Caster, 300 lb., Delrin, Gray

  • Mfr # P12SX-PRP040D-12-SS

  • Zoro # G4597546

product price: $54.19
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12SX-PRP040D-12-SS
Zoro #
G4597546
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3-1/4 in
Stem Dia.
No Stem
Overall Height
5-1/8in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Extended Lead
No
Frame Finish
Polished
Includes
Complete Caster
Caster Temp. Range Available
Yes
Wheel Color
Gray
Features
Corrosion Resistance, Floor Protection, Noise Reduction
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-PRP-040x013/038D
Thread Guards
No
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Application
Retail, Industrial, Commercial
Tread Color
Gray
Tread
Standard
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Operating Temperature Range
-45 Degrees to 180 Degrees F
Wheel Core Material
Polypropylene
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
300 lb
Series
P12X Series
ESD Conductive
No
Caster Features
Corrosion-Resistant, Debris-Resistant
Compatible With
IS040520670AG
Load Capacity - Maximum
300 lb
Wheel Bearing Material
Delrin
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
