  11. Swivel NSF-Listed Plate Caster, 350 lb., 55 Shore D
Zoro Select Swivel NSF-Listed Plate Caster, 350 lb., 55 Shore D P12SX-UP040D-12 - main

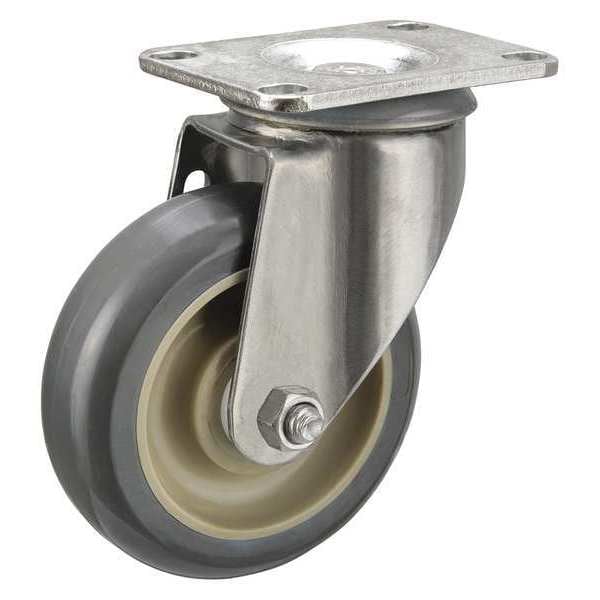

Swivel NSF-Listed Plate Caster, 350 lb., 55 Shore D

  • Mfr # P12SX-UP040D-12

  • Zoro # G4635233

product price: $36.49
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12SX-UP040D-12
Zoro #
G4635233
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
Stem Dia.
No Stem
Swivel Radius
3-1/4 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Length
2.813 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 1/2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
325 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
55 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Thread Guards
No
Wheel Color
Gray
Replacement Wheel
Mfr. No. P-UP-030X013/038DX
Caster Brake Included
No
Extended Lead
No
Frame Finish
Polished
Includes
Dust Cover Grease Seal
Standards
RoHS, ICWM, NSF
Caster Temp. Range Available
Yes
Caster Stem Type
No Stem/Plate Included
Tread Color
Gray
Tread
Standard
Wheel Core Material
Polypropylene
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Swivel Lock Type
No Lock Included
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12X Series
Load Capacity
275 lb
ESD Conductive
No
Load Capacity - Maximum
275 lb
Compatible With
P-UP-040X013/050D
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
