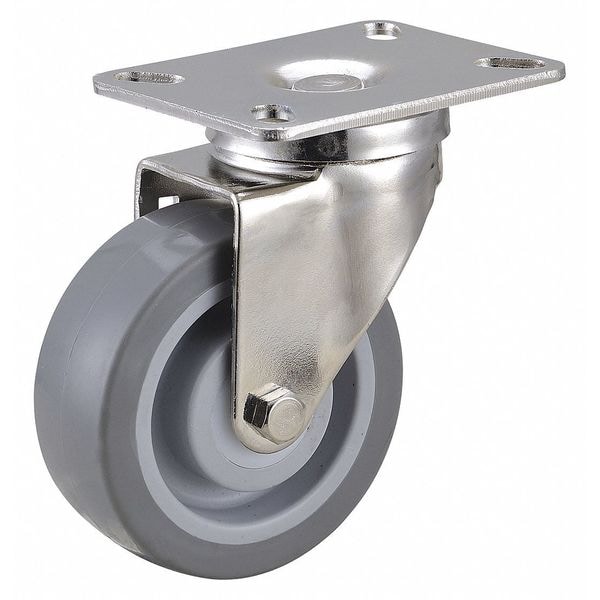

Zoro Select Swivel NSF-Listed Plate Caster, 4 in. Dia., 275 lb. 33H929 - main

Swivel NSF-Listed Plate Caster, 4 in. Dia., 275 lb.

  • Mfr # 33H929

  • Zoro # G4803897

product price:  $12.29
/ea

Key Features

Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Standards
NSF Listed
Wheel Width
1 1/2 in
Frame Finish
Nickel Plated
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
33H929
Zoro #
G4803897
UPC #
190735900703
Country of Origin
China

Dimensions

Wheel Width
1 1/2 in
Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
5-3/16in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Height
5 3/16 in
Mounting Plate Thickness
5/32in

Details

Caster Stem Type
No Stem/Plate Included
Number of Wheels
1
Standards
NSF Listed
Frame Finish
Nickel Plated
Replacement Wheel
IR04105206G
Non-Marking
Yes
Caster Brake Included
No
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Core Color
Gray
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Includes
Top and Bottom Grease Seals; Dust Cover
Extended Lead
No
Load Rating
275 lb
Thread Guards
No
Caster Temp. Range Available
Yes
Item
Plate Caster
Wheel Color
Gray
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Plate Hole Pattern
A
Caster Brake Type
No Brake
Load Rating Range
0 to 299 lb
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Wheel Hardness Rating
75 Shore A
Load Capacity - Maximum
275 lb
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
