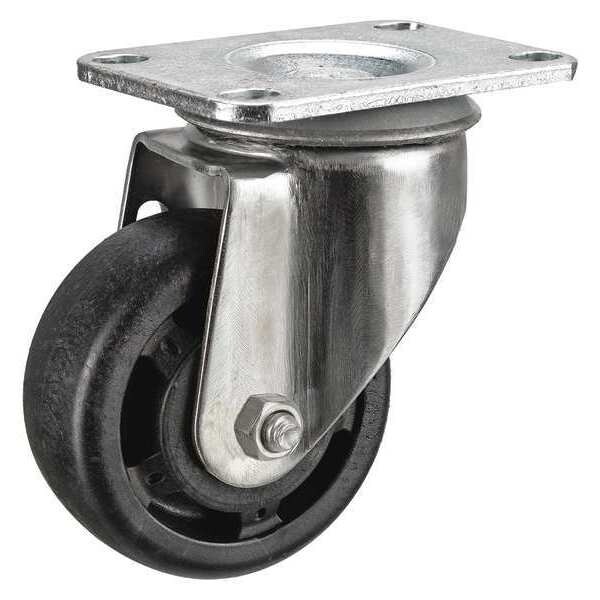

Zoro Select Swivel NSF-Listed Plate Caster, Glass Filled Nylon, 3-1/2in, 250lb P12SX-HNG035G-12 - main

Swivel NSF-Listed Plate Caster, Glass Filled Nylon, 3-1/2in, 250lb

  • Mfr # P12SX-HNG035G-12

  • Zoro # G4561076

product price:  $36.55
/ea

Key Features

Load Rating
250 lb
Application
Food Service, Hospitals, Laboratories, Pharmaceuticals
Core Color
Black
Stem Dia.
No Stem
Wheel Dia.
3 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12SX-HNG035G-12
Zoro #
G4561076
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Wheel Dia.
3 1/2 in
Mounting Bolt Dia.
5/16 in
Overall Height
4-11/16in
Wheel Width
1 1/4 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
4 11/16 in
Swivel Radius
3 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Length
2 1/2 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Mounting Plate Thickness
1/8in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in

Details

Load Rating
250 lb
Application
Food Service, Hospitals, Laboratories, Pharmaceuticals
Core Color
Black
Includes
Dust Cover
Extended Lead
No
Caster Plate Hole Pattern
C
Caster Frame Material
Stainless Steel
Standards
ANSI ICWM, NSF Listed
Caster Temp. Range Available
Yes
Wheel Color
Black
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Item
Swivel Caster
Caster Sub-Type
Swivel
Caster Brake Included
No
Frame Finish
Polished
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Non-Marking
Yes
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Caster Mounting Type
Plate
Tread
Standard
System of Measurement
Inch
Tread Color
Black
Caster Brake Type
No Brake
Replacement Wheel
Mfr. No. P-HNG-035x013/038G
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel Core Material
Glass Filled Nylon
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Plain
Tread Shape
Donut Tread
Wheel/Tread Material
Glass Filled Nylon
Wheel/Tread Color
Black
Series
P12X Series
Load Capacity
175 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
300 lb
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
Up to 550 Degrees F
Operating Temperature - Maximum
550 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
