Zoro Select Swivel NSF-Listed Plate Caster, Phenolic, 6 in, 450 lb 02TM06101S002GN - main

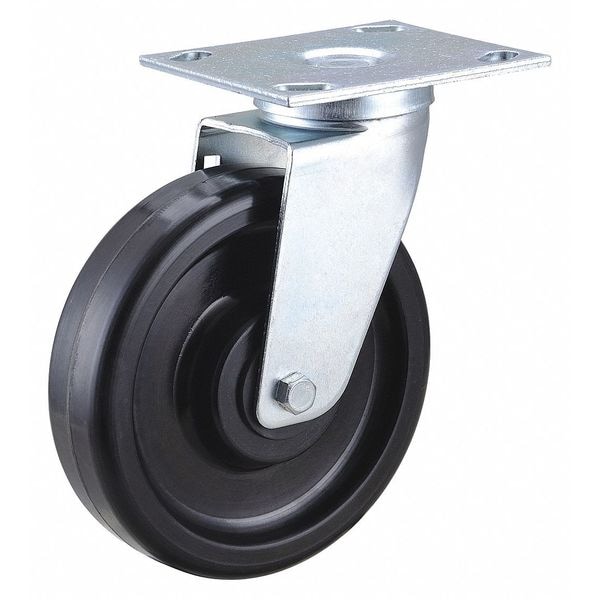

Swivel NSF-Listed Plate Caster, Phenolic, 6 in, 450 lb

  • Mfr # 02TM06101S002GN

  • Zoro # G4803373

product price:  $21.29
/ea

Key Features

Caster Sub-Type
Swivel
Wheel Color
Black
Load Rating
450 lb
Extended Lead
No
Mounting Bolt Dia.
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
02TM06101S002GN
Zoro #
G4803373
UPC #
190735900659
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 in
Overall Height
7-5/16in
Wheel Width
1 1/2 in
Stem Dia.
No Stem
Mounting Height
7 5/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in

Details

Caster Sub-Type
Swivel
Wheel Color
Black
Load Rating
450 lb
Extended Lead
No
Includes
Dust Cover
Caster Plate Hole Pattern
B
Core Color
Black
Caster Brake Included
No
Replacement Wheel
TM0610106G
Number of Wheels
1
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Frame Finish
Zinc Plated
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Temp. Range Available
Yes
Thread Guards
No
Item
Plate Caster
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Standards
NSF Listed
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Wheel Core Material
Phenolic
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Load Rating Range
300 to 999 lb
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Load Capacity - Maximum
450 lb
Compatible With
TM0610106G
Wheel Hardness Rating
85 Shore D
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
