  6. Swivel NSF-Listed Plate Caster, Poly, 3-1/2 in, 250 lb, C

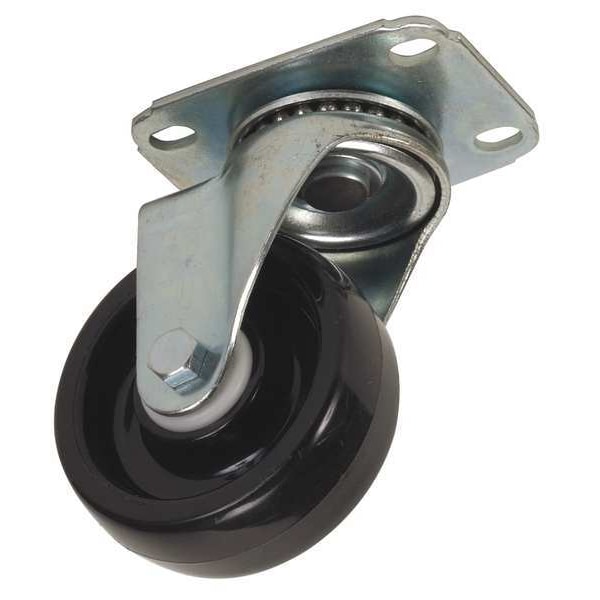

Zoro Select Swivel NSF-Listed Plate Caster, Poly, 3-1/2 in, 250 lb, C 4W911 - main

Swivel NSF-Listed Plate Caster, Poly, 3-1/2 in, 250 lb, C

  • Mfr # 4W911

  • Zoro # G3347644

product price:  $8.15
/ea

Key Features

Caster Stem Type
No Stem/Plate Included
Mounting Bolt Dia.
5/16 in
Caster Frame Material
Steel
Standards
ANSI, ANSI ICWM, NSF
Application
General Purpose
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4W911
Zoro #
G3347644
UPC #
190735521298
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Overall Height
4-11/16''
Wheel Dia.
3 1/2 in
Wheel Width
1 1/4 in
Stem Dia.
No Stem
Mounting Height
4 11/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
1/8in

Details

Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Standards
ANSI, ANSI ICWM, NSF
Application
General Purpose
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Temp. Range Available
No
Item
Plate Caster
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Plate Hole Pattern
C
Wheel Color
Black
Replacement Wheel
1KA87
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Non-Marking
Yes
Load Rating
250 lb
Number of Wheels
1
Caster Brake Included
No
Thread Guards
No
Core Color
Black
Caster Brake Type
No Brake
Number of Mounting Holes
4
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Delrin
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Wheel Core Material
Polyolefin
Tread Shape
Standard
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
Load Capacity - Maximum
250 lb
Wheel Hardness Rating
65 Shore D
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
