  6. Swivel NSF-Listed Plate Caster, Poly, 5 in, 300 lb, Blu
Zoro Select Swivel NSF-Listed Plate Caster, Poly, 5 in, 300 lb, Blu 5UX88 - main

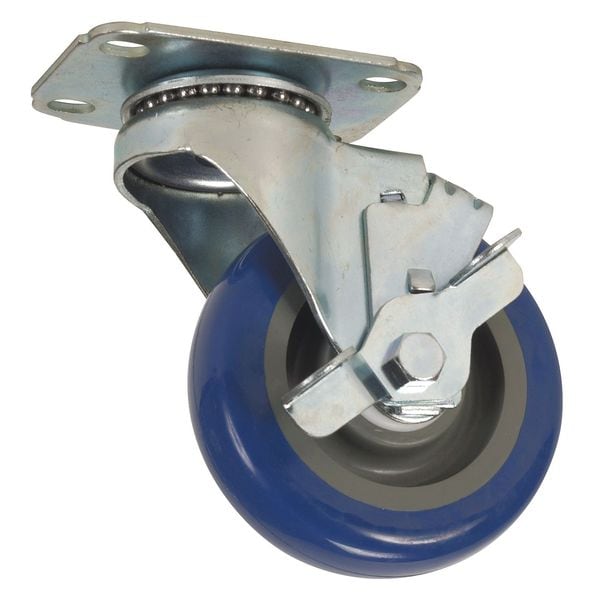

Swivel NSF-Listed Plate Caster, Poly, 5 in, 300 lb, Blu

  • Mfr # 5UX88

  • Zoro # G2749311

product price:  $15.59
/ea

Key Features

Overall Height
6-3/16in
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
C
Wheel Color
Blue
Caster Brake Included
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5UX88
Zoro #
G2749311
UPC #
190735533970
Country of Origin
China

Dimensions

Overall Height
6-3/16in
Stem Dia.
No Stem
Wheel Width
1 1/4 in
Wheel Dia.
5 in
Mounting Bolt Dia.
5/16 in
Mounting Height
6 3/16 in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
1/8in

Details

Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
C
Wheel Color
Blue
Caster Brake Included
Yes
Caster Temp. Range Available
No
Frame Finish
Zinc Plated
Number of Wheels
1
Application
General Purpose
Core Color
Gray
Replacement Wheel
1KB23
Non-Marking
Yes
Thread Guards
No
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Frame Material
Steel
Item
Plate Caster
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Load Rating
300 lb
Caster Brake Type
Side Brake
Caster Sub-Type
Swivel
Standards
ANSI, ANSI ICWM, NSF
Includes Thread Guards
No
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Firm
Load Rating Range
300 to 999 lb
Wheel Bearing Type
Delrin
Wheel Core Material
Polyolefin
Swivel Construction
Kingpin
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
300 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
