Shop ZORO SELECT

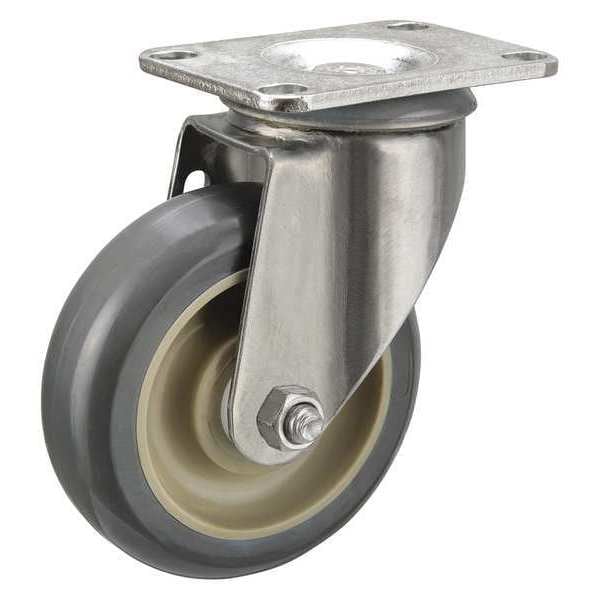

Swivel NSF-Listed Plate Caster, Polyurethane, 3-1/2in, 350lb

  • Mfr # P12SX-UP035D-12

  • Zoro # G4594003

product price:
$
38.39
/ea

Key Features

Number of Wheels
1
Caster Plate Hole Pattern
C
Extended Lead
No
Application
Food Service, Hospitals, Laboratories, Pharmaceuticals
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12SX-UP035D-12
Zoro #
G4594003
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 1/2 in
Overall Height
4-11/16"
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Swivel Radius
3 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Thickness
5/32 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Length
2 1/2 in

Details

Number of Wheels
1
Caster Plate Hole Pattern
C
Extended Lead
No
Application
Food Service, Hospitals, Laboratories, Pharmaceuticals
Caster Temp. Range Available
Yes
Caster Frame Material
Stainless Steel
Frame Finish
Polished
Load Rating
325 lb
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Thread Guards
No
Non-Marking
Yes
Core Color
Beige
Replacement Wheel
Mfr. No. P-UP-035X013/050D
Wheel Color
Gray
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Standards
ANSI ICWM, NSF Listed
Item
Plate Caster
Caster Sub-Type
Swivel
Includes
Dust Cover Grease Seal
Caster Mounting Type
Plate
Tread
Standard
System of Measurement
Inch
Tread Color
Gray
Caster Brake Type
No Brake
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Tread Shape
Standard
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Series
P12X Series
ESD Conductive
No
Load Capacity
250 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
60 Shore D
Compatible With
P-UP-035X013/050D
Load Capacity - Maximum
250 lb
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Delrin
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 325 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
