  11. Swivel Plate Caster w/Total-Lock, Polyur, 3in, 250lb
Shop All Plate Casters
Zoro Select

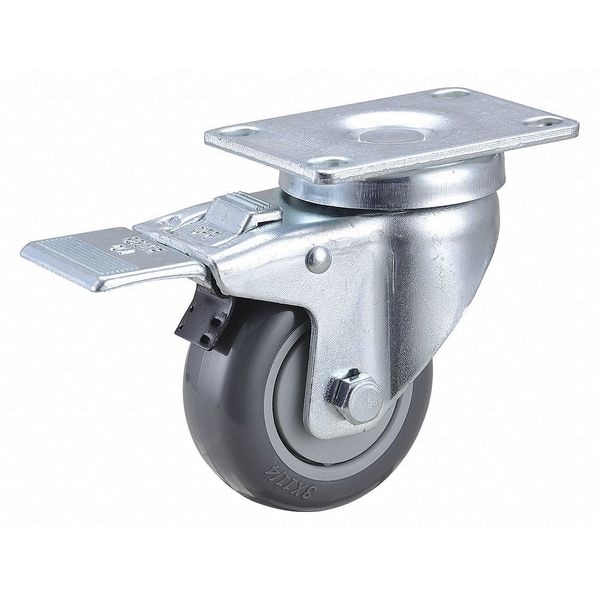

Swivel Plate Caster w/Total-Lock, Polyur, 3in, 250lb

product price: $13.75
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Crown
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 4-1/4"
Wheel Dia. 3 in
Wheel Width 1 1/4 in
Stem Dia. No Stem
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-1/2" x 3-5/8"
Plate Size 2-1/2" x 3-5/8"
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Height 4 1/4 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Crown
Caster Wheel/Tread Material Polyurethane
Load Rating 250 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Thread Guards Yes
Caster Raceway Double Ball
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Non-Marking Yes
Caster Swivel Lock Type Total Lock
Caster Core Material Polyolefin
Standards ANSI/ICWM
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Caster Product Group Swivel Caster with Total Lock
Item Debris-Resistant Standard Plate Caster
Caster Brake Type Total Lock Brake
Includes Thread guards
Frame Finish Zinc Plated
Caster Wheel Bearings Ball
Extended Lead No
Caster Temp. Range -40 Degrees to 175 Degrees F
Caster Plate Hole Pattern C
Durometer 95 Shore A
Application Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Core Color Gray
Caster Plate Thickness 5/32"
Wheel Color Gray
Caster Frame Material Steel
Caster Max. Temp. 175 Degrees F
Caster Temp. Range Available Yes
Plate Caster Bolt Hole Pattern C
Caster Min. Temp. -40 Degrees F
Frame Material Steel
Plate Thickness 5/32"
Wheel/Tread Hardness Rating Firm
Load Rating Range 0 to 299 lb
Mounting Plate Bolt Hole Pattern C
Wheel Bearing Type Precision Ball
Tread Shape Standard
Wheel/Tread Hardness 95 Shore A
Includes Thread Guards Yes
Swivel Raceway Type Double Ball
Number of Mounting Holes 4
Swivel Lock Type Total Lock
Swivel Construction Kingpin
Wheel Core Material Plastic
Wheel/Tread Material Polyurethane
Wheel/Tread Color Gray

Description

Swivel, Debris-Resistant Standard Plate Caster, Load Rating 250 lb, Swivel Lock Type Total Lock, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
