  11. Swivel NSF-Listed Plate Caster, Polyurthane, 8 in., 900 lb
Shop All Plate Casters
Zoro Select

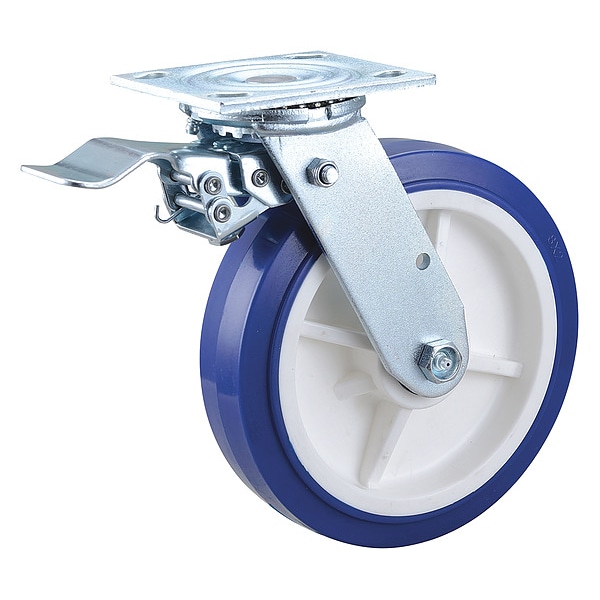

Swivel NSF-Listed Plate Caster, Polyurthane, 8 in., 900 lb

original price: $64.81
23% off
new price: $49.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyurethane
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Stem Dia. No Stem
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"
Mounting Height 9 1/2 in
Mounting Plate Size 4 in x 4 1/2 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Load Rating 900 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Item NSF-Listed Sanitary Plate Caster
Caster Frame Material Steel
Caster Product Group Swivel Caster with Total Lock
Thread Guards No
Standards NSF Listed
Caster Plate Thickness 15/64"
Plate Thickness 15/64"
Caster Temp. Range Available No
Caster Core Material Polyolefin
Plate Caster Bolt Hole Pattern B
Caster Brake Type Total Lock Brake
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Durometer 95 Shore A
Caster Wheel Bearings Delrin
Frame Finish Zinc Plated
Wheel Color Blue
Core Color White
Inside Bolt Hole Spacing 3 in x 3 in
Caster Raceway Double Ball
Caster Plate Hole Pattern B
Caster Swivel Lock Type Total Lock
Frame Material Steel
Non-Marking Yes
Wheel/Tread Hardness Rating Firm
Wheel/Tread Hardness 95 Shore A
Swivel Raceway Type Double Ball
Tread Shape Standard
Swivel Construction Kingpin
Mounting Plate Bolt Hole Pattern B
Wheel Core Material Plastic
Load Rating Range 300 to 999 lb
Wheel Bearing Type Roller
Swivel Lock Type Total Lock
Number of Mounting Holes 4
Includes Thread Guards No
Wheel/Tread Material Polyurethane
Wheel/Tread Color Blue

Description

Swivel, NSF-Listed Sanitary Plate Caster, Load Rating 900 lb, Swivel Lock Type Total Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock Brake, Tread Shape Standard
