Zoro Select Swivel NSF-Listed Plate Caster, TPR, 2 in., 80 lb. P5S-RP020G-P-001 - main

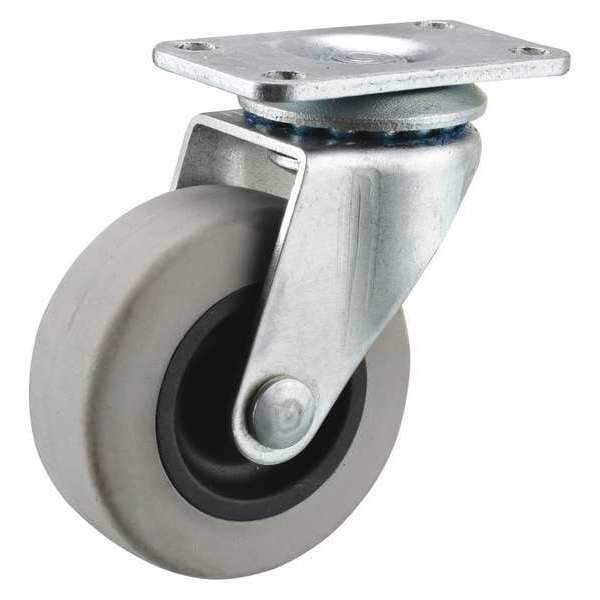

Swivel NSF-Listed Plate Caster, TPR, 2 in., 80 lb.

  • Mfr # P5S-RP020G-P-001

  • Zoro # G8561892

product price:  $4.95
/ea

Key Features

Application
Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment
Caster Plate Hole Pattern
D
Caster Brake Included
No
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P5S-RP020G-P-001
Zoro #
G8561892
UPC #
-
Country of Origin
China

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
5/16 in
Wheel Dia.
2 in
Wheel Width
13/16 in
Overall Height
2-5/8in
Mounting Height
2 5/8 in
Mounting Plate Size
1-3/16in x 2in
Swivel Radius
1-3/4 in
Mounting Plate Length
1 3/4 in
Mounting Plate Thickness
3/32in
Bolt Hole Spacing - Width
0.969 in
Overall Wheel Width
13/16 in
Bolt Hole Spacing - Length
2.125 in
For Axle Dia.
5/16 in

Details

Application
Carts, Fixtures, Furniture, Institutional Equipment, Medical Equipment
Caster Plate Hole Pattern
D
Item
Swivel Caster
Caster Brake Included
No
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Frame Finish
Zinc Plated
Load Rating
80 lb
Inside Bolt Hole Spacing
31/32 in x 2-1/8 in
Non-Marking
Yes
Extended Lead
No
Thread Guards
No
Standards
ANSI ICWM, NSF, RoHS
Caster Sub-Type
Swivel
Caster Frame Material
Steel
Outside Bolt Hole Spacing
31/32 in x 2-1/8 in
Caster Temp. Range Available
Yes
Core Color
Gray
Wheel Color
Gray
Caster Brake Type
No Brake
Tread
Standard
Caster Mounting Type
Plate
Tread Color
Gray
System of Measurement
Inch
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Bearing Type
Plain
Tread Shape
Standard
Wheel Core Material
Polypropylene
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Series
P5 Series
Load Capacity
90 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
90 lb
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 80 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 13/16 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
