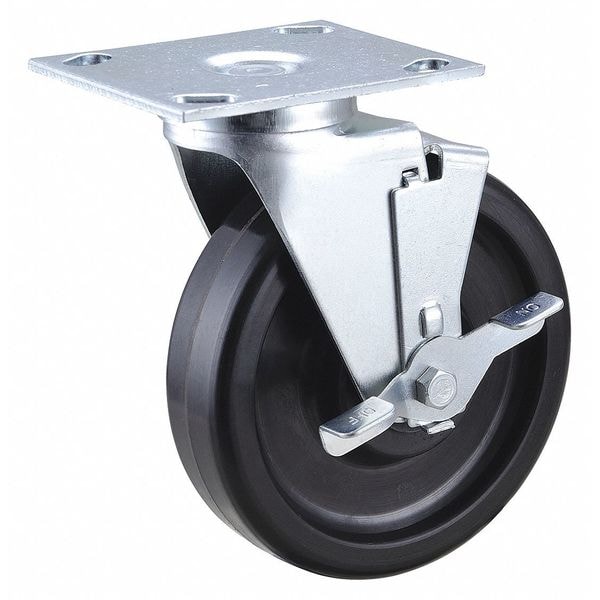

  11. Swivel NSF-Listed Plate Caster w/Brake, Phenolic, 6 in, 450 lb
Zoro Select Swivel NSF-Listed Plate Caster w/Brake, Phenolic, 6 in, 450 lb 33H643 - main

Swivel NSF-Listed Plate Caster w/Brake, Phenolic, 6 in, 450 lb

  • Mfr # 33H643

  • Zoro # G4598413

product price: $23.79
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Wheel Dia.
6 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33H643
Zoro #
G4598413
UPC #
190735900437
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/2 in
Mounting Height
7 5/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
7-5/16in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Phenolic
Caster Brake Type
Side Brake
Load Rating
450 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Brake Included
Yes
Standards
NSF Listed
Thread Guards
No
Wheel Color
Black
Frame Finish
Zinc Plated
Extended Lead
No
Replacement Wheel
Mfr. No. TM0610106G
Includes
Dust Cover
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Swivel Construction
Kingpin
Wheel Core Material
Phenolic
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Load Capacity - Maximum
450 lb
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
