  11. Swivel NSF-Listed Plate Cstr w/Brake, NSF-Listed Plate Type A
Zoro Select Swivel NSF-Listed Plate Cstr w/Brake, NSF-Listed Plate Type A 33J036 - main

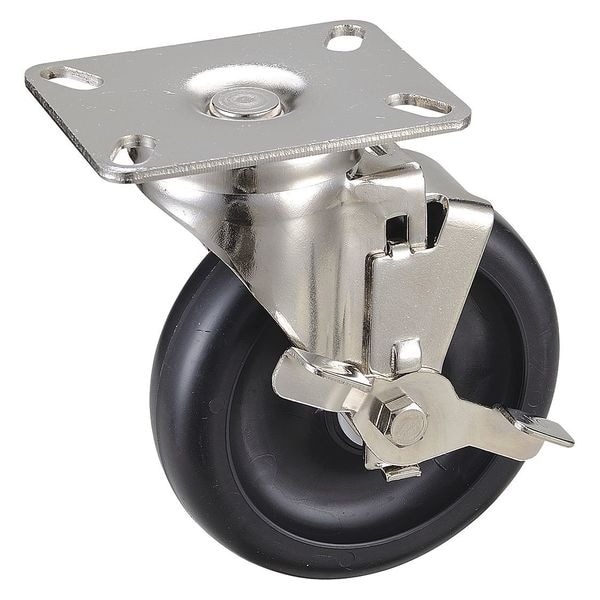

Swivel NSF-Listed Plate Cstr w/Brake, NSF-Listed Plate Type A

  • Mfr # 33J036

  • Zoro # G4805272

product price: $14.35
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Wheel Dia.
5 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33J036
Zoro #
G4805272
UPC #
190735900864
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Plate Size
3 1/8 in x 4 1/8 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-3/16in
Stem Dia.
No Stem

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Load Rating
450 lb
Wheel Bearing Type
Delrin
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Plate Hole Pattern
A
Frame Finish
Nickel Plated
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Replacement Wheel
26Y368
Thread Guards
No
Wheel Color
Black
Standards
ANSI, ANSI ICWM, NSF
Includes
Top and Bottom Grease Seals; Dust Cover
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polyolefin
Load Capacity - Maximum
450 lb
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
