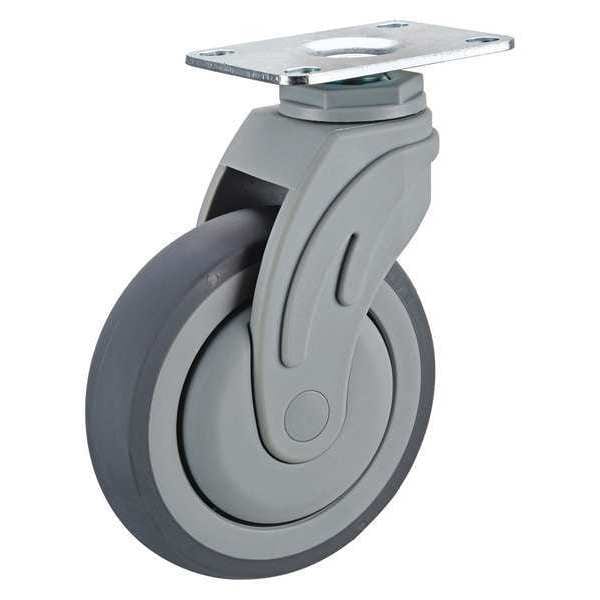

Zoro Select Swivel Plate Caster, 5 in. Dia., 300 lb. P17S-RP050K-12-001 - main

Swivel Plate Caster, 5 in. Dia., 300 lb.

  • Mfr # P17S-RP050K-12-001

  • Zoro # G2796631

product price:  $18.89
/ea

Key Features

Overall Height
6-7/8in
Frame Finish
Natural Light Gray
Caster Plate Hole Pattern
C
Stem Dia.
No Stem
Thread Guards
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P17S-RP050K-12-001
Zoro #
G2796631
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-7/8in
Stem Dia.
No Stem
Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Mounting Height
6 7/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Swivel Radius
3-13/16 in
Mounting Plate Thickness
5/32in
Inside Slot Spacing - Length
2.813 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Length
3.063 in

Details

Item
Swivel Caster
Frame Finish
Natural Light Gray
Caster Plate Hole Pattern
C
Thread Guards
Yes
Wheel Color
Gray
Extended Lead
No
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Standards
ANSI ICWM
Non-Marking
Yes
Caster Temp. Range Available
Yes
Caster Brake Included
No
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Load Rating
220 lb
Caster Sub-Type
Swivel
Includes
Thread Guards
Caster Frame Material
Nylon
Caster Stem Type
No Stem/Plate Included
Core Color
Gray
Number of Wheels
1
Application
Animal Cage Carts, Case Carts, Food Service Equipment, Hospital Carts, Institutional Equipment, Medical Equipment, Utility Carts
Tread Color
Gray
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Tread
Standard
System of Measurement
Inch
Swivel Raceway Type
Precision Ball
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel Core Material
Polypropylene
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Load Rating Range
Light-Medium Duty
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Includes Thread Guards
Yes
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Load Capacity
220 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P17 Series
ESD Conductive
No
Load Capacity - Maximum
220 lb
Wheel Hardness Rating
90 Shore A
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Operating Temperature Range
-30 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Swivel, Plate Caster, Load Rating 220 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
