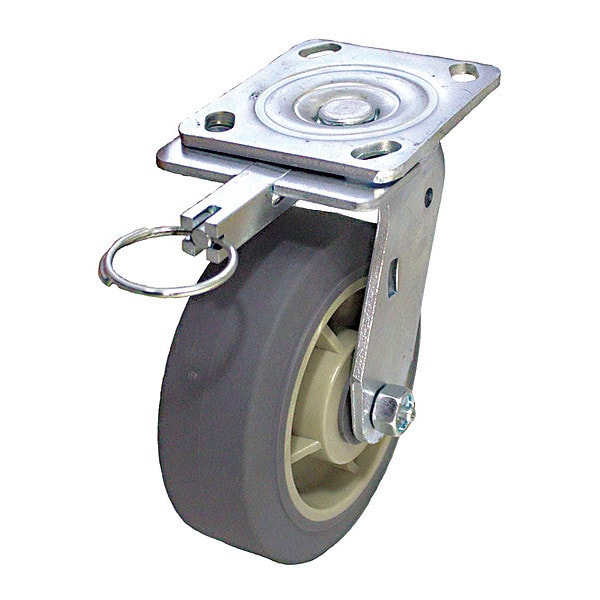

Zoro Select Plate Caster, Swivel, Rubber, 5 5/8"H P21S-PRP040R-14-DL - main

Plate Caster, Swivel, Rubber, 5 5/8"H

  • Mfr # P21S-PRP040R-14-DL

  • Zoro # G3573322

product price:  $28.35
/ea

Key Features

Mounting Bolt Dia.
3/8 in
Caster Brake Type
Directional Lock
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PRP040R-14-DL
Zoro #
G3573322
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Wheel Dia.
4 in
Mounting Plate Size
4in x 4-1/2in
Overall Height
5-5/8in
Swivel Radius
3-3/8 in
Mounting Plate Length
4 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster with Four Position Swivel Lock
Caster Brake Type
Directional Lock
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Swivel Raceway Type
Double Ball
Wheel Color
Gray
System of Measurement
Inch
Thread Guards
No
Extended Lead
No
Load Rating Range
Light-Medium Duty
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Wheel Bearing Type
Roller
Features
Push/Pull Force Reduction
Caster Mounting Type
Plate
Number of Wheels
1
Tread Color
Gray
Caster Sub-Type
Swivel
Swivel Lock Type
Directional Lock
Caster Brake Included
No
Number of Mounting Holes
4
Wheel Core Material
Polypropylene
Load Rating
300 lb
Tread Shape
Standard
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Standards
DIN EN 12530
Wheel/Tread Material
Thermoplastic Rubber
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Includes
Directional Lock
Swivel Construction
Kingpin
Replacement Wheel
Mfr. No. P-RP-040x020/050R
Frame Finish
Zinc Plated
Tread
Standard
Wheel/Tread Color
Gray
Series
P21 Series
Load Capacity
300 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
300 lb
Compatible With
P-RP-040X020/050R
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
