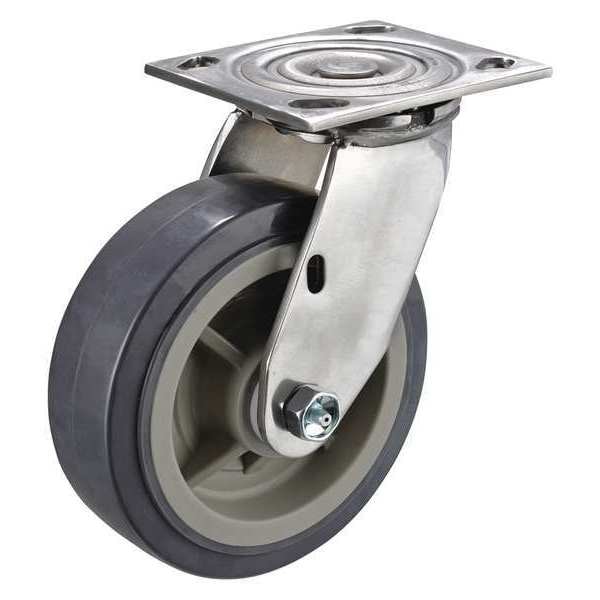

Swivel Plate Caster, 6 in Dia, 900 lb, Gray

  • Mfr # P21SX-UP060D-14

  • Zoro # G2991502

product price:
$
153.99
/ea
Free Shipping & Returns

Key Features

Extended Lead
No
Caster Plate Hole Pattern
B
Wheel Width
2 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21SX-UP060D-14
Zoro #
G2991502
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Wheel Dia.
6 in
Overall Height
7-1/2"
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Swivel Radius
5 in
Mounting Plate Length
4 1/2 in
Mounting Plate Thickness
7/32 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in
Bolt Hole Spacing - Length
2.625 in
Outside Slot Spacing - Length
3.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in

Details

Extended Lead
No
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Swivel
Non-Marking
Yes
Caster Stem Type
No Stem/Plate Included
Load Rating
900 lb
Number of Wheels
1
Frame Finish
Polished
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Caster Temp. Range Available
Yes
Item
Plate Caster
Thread Guards
No
Wheel Color
Gray
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Gray
Caster Frame Material
Stainless Steel
Features
Antimicrobial Tread
Caster Mounting Type
Plate
Tread Color
Gray
Tread
Standard
Caster Brake Type
No Brake
Standards
RoHS, ICWM, NSF
Replacement Wheel
Mfr. No. P-UP-060x020/050D
System of Measurement
Inch
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polyolefin
Tread Shape
Standard
Load Rating Range
Light-Medium Duty
Swivel Construction
Kingpin
Number of Mounting Holes
4
Wheel Bearing Type
Delrin
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Load Capacity
880 lb
ESD Conductive
No
Series
P21X Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL21X-14 (Directional Lock)
Load Capacity - Maximum
880 lb
Wheel Hardness Rating
60 Shore D
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Delrin
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
