  6. Plate Caster, Swivel, Polyurethane, 5 7/8"H
Zoro Select Plate Caster, Swivel, Polyurethane, 5 7/8"H L-PATH 125KF-FI - main

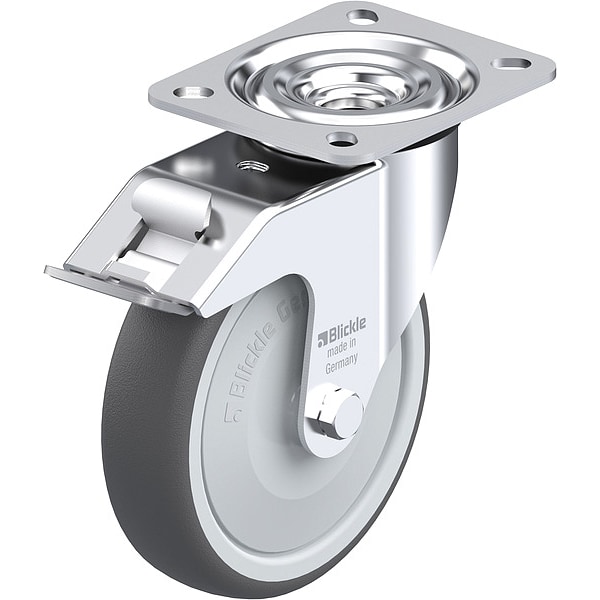

Plate Caster, Swivel, Polyurethane, 5 7/8"H

  • Mfr # L-PATH 125KF-FI

  • Zoro # G514810901

product price:  $77.49
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Number of Mounting Holes
4
Core Color
Silver
Caster Brake Type
Total Lock
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PATH 125KF-FI
Zoro #
G514810901
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
32 mm
Mounting Height
149 mm
Wheel Dia.
127 mm
Mounting Bolt Dia.
9 mm
Hub Length
40 mm
Mounting Plate Width
86 mm
Overall Wheel Width
32 mm
For Axle Dia.
8 mm
Inside Slot Spacing - Length
76 mm
Inside Slot Spacing - Width
55 mm
Outside Slot Spacing - Width
60 mm
Mounting Plate Length
100 mm
Mounting Plate Thickness
3 mm
Outside Slot Spacing - Length
80 mm

Details

Caster Sub-Type
Swivel
Number of Mounting Holes
4
Core Color
Silver
Caster Brake Type
Total Lock
Caster Frame Material
Steel
Non-Marking
Yes
Caster Mounting Type
Plate
System of Measurement
Metric
Swivel Construction
Kingpin
Item
Plate Caster
Wheel/Tread Color
Gray
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Number of Wheels
1
Series
PATH
Frame Finish
Zinc Plated
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Maximum
70 Degrees C
Includes Thread Guards
Yes
Swivel Bearing Seal Type
Sealed
Wheel Bearing Type
Ball
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Material
Nylon
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Tread Shape
Standard
Wheel Hardness Rating
94 Shore A
Frame Construction
Pressed
Swivel Raceway Type
Double Ball
Operating Temperature - Minimum
-20 Degrees C
Wheel/Tread Material
Polyurethane
NSF Listed
No
Wheel Bearing Material
Steel
Brake Location
Rear
Load Capacity - Maximum
1,380 lb

Description

Swivel, Plate Caster, Wheel Dia. 127 mm, Wheel Width 32 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
