  11. Swivel Plate Caster, 600 lb., Delrin

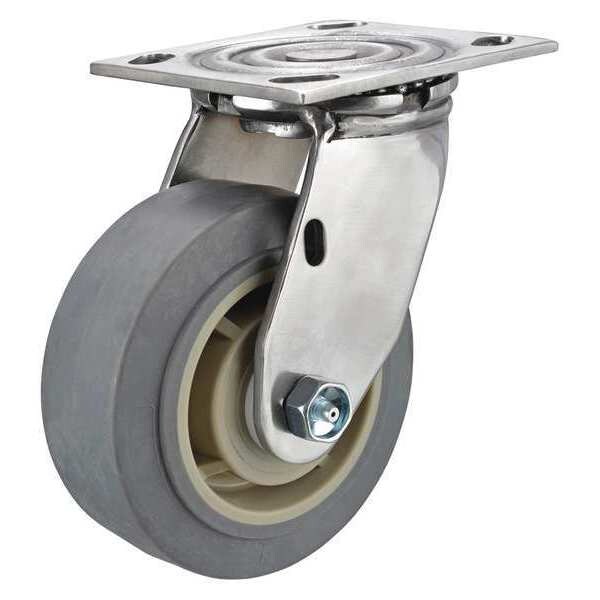

Zoro Select Swivel Plate Caster, 600 lb., Delrin P21SX-RP060D-14-AM - main

Swivel Plate Caster, 600 lb., Delrin

  • Mfr # P21SX-RP060D-14-AM

  • Zoro # G1205906

product price: $145.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21SX-RP060D-14-AM
Zoro #
G1205906
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Overall Height
7-1/2in
Swivel Radius
5 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Features
Antimicrobial Tread
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Application
Retail, Industrial, Commercial
Caster Temp. Range Available
Yes
Caster Brake Included
No
Thread Guards
No
Frame Finish
Polished
Wheel Color
Gray
Replacement Wheel
Mfr. No. P-RP-060x020/050DX-AM
Standards
RoHS, ICWM, NSF
Tread
Standard
Tread Color
Gray
Includes
Anti-Microbial Tread
Swivel Raceway Type
Double Ball
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Series
P21X Series
Accessories
Optional: P-DL21X-14 (Directional Lock)
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
500 lb
Load Capacity - Maximum
500 lb
Compatible With
XS0625112PREVG
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
Wheel Core Type
Solid
Caster Features
Antimicrobial, Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
