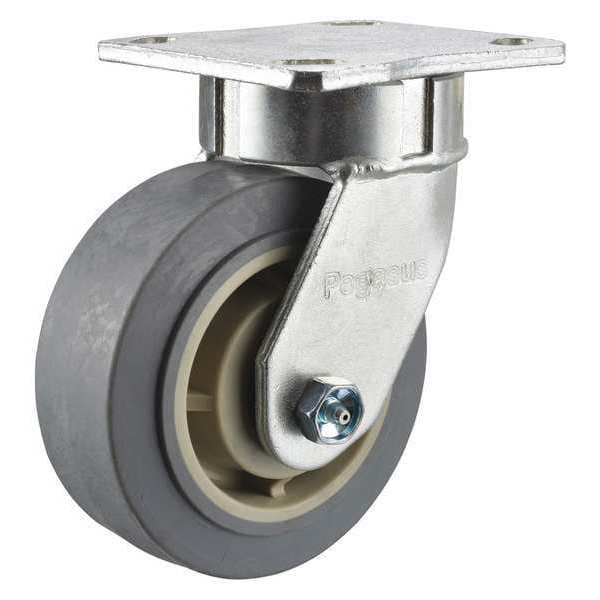

Zoro Select Swivel Plate Caster, Ball, Steel P24S-PRP040K-14 - main

Swivel Plate Caster, Ball, Steel

  • Mfr # P24S-PRP040K-14

  • Zoro # G0974775

product price:  $60.89
/ea

Key Features

Non-Marking
Yes
Extended Lead
No
Wheel Dia.
4 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P24S-PRP040K-14
Zoro #
G0974775
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Swivel Radius
3-11/16 in
Stem Dia.
No Stem
Overall Height
5-5/8in
Mounting Height
5 5/8 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Mounting Plate Length
4 in

Details

Non-Marking
Yes
Extended Lead
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Load Rating
300 lb
Caster Plate Hole Pattern
B
Core Color
Gray
Inside Bolt Hole Spacing
3 in x 3 in
Includes
Complete Caster
Frame Finish
Zinc Plated
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Standards
ANSI ICWM
Features
Floor Protective, Maintenance Free, Noise Reduction
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-RP-040x020/050K
Caster Sub-Type
Swivel
Item
Swivel Caster
Number of Wheels
1
Caster Brake Included
No
Wheel Color
Gray
Caster Temp. Range Available
Yes
Tread Color
Gray
Tread
Standard
System of Measurement
Inch
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Tread Shape
Standard
Wheel Core Material
Polypropylene
Load Rating Range
Light-Medium Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Series
P24 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
300 lb
ESD Conductive
No
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
300 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
