  6. Swivel Plate Caster, Cast Iron, 6 in., 1750 lb., A
Zoro Select Swivel Plate Caster, Cast Iron, 6 in., 1750 lb., A 1NVU2 - main

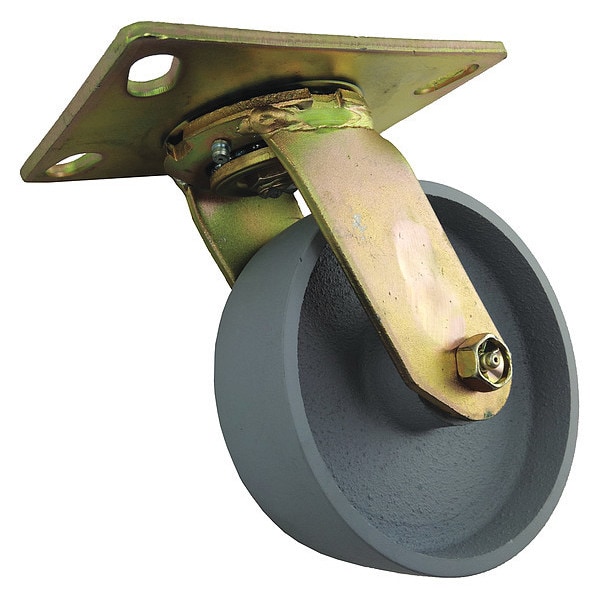

Swivel Plate Caster, Cast Iron, 6 in., 1750 lb., A

  • Mfr # 1NVU2

  • Zoro # G2242572

product price:  $55.45
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Width
2 in
Mounting Height
7 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1NVU2
Zoro #
G2242572
UPC #
190735405536
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2in
Stem Dia.
No Stem
Mounting Plate Thickness
15/64in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Color
Gray
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Zinc Chromate
Load Rating
1750 lb
Thread Guards
No
Caster Plate Hole Pattern
A
Caster Stem Type
No Stem/Plate Included
Features
Corrosion Resistant
Caster Brake Included
No
Caster Temp. Range Available
No
System of Measurement
Inch
Includes Thread Guards
No
Swivel Construction
Kingpin
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Wheel Core Material
Iron
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
1,750 lb

Description

Swivel, Plate Caster, Load Rating 1750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
