  11. Swivel Plate Caster, Nylon, 2-9/16 in, 770 lb

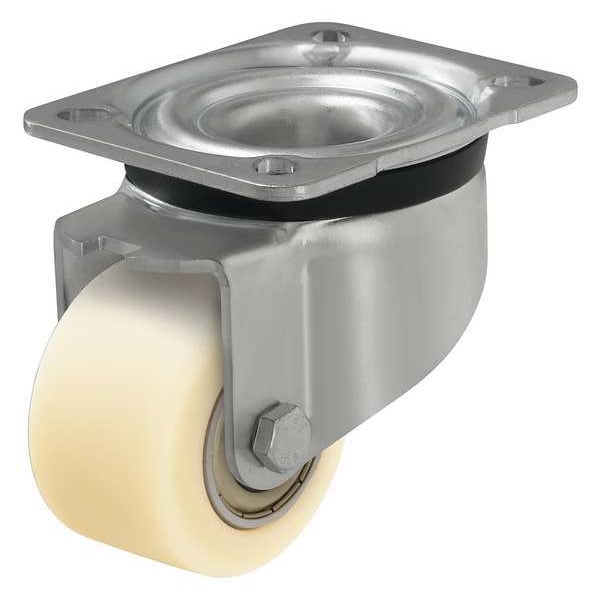

Zoro Select Swivel Plate Caster, Nylon, 2-9/16 in, 770 lb LK-GSPO 65K - main

Swivel Plate Caster, Nylon, 2-9/16 in, 770 lb

  • Mfr # LK-GSPO 65K

  • Zoro # G6664795

product price: $79.69
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
2 9/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LK-GSPO 65K
Zoro #
G6664795
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 9/16 in
Wheel Width
1 9/16 in
Mounting Height
3 9/16 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Plate Thickness
9/64in
Mounting Bolt Dia.
5/16 in
Overall Height
3-9/16in
Stem Dia.
No Stem
Swivel Radius
77.5 mm
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in
Overall Wheel Width
1 9/16 in
Mounting Plate Length
3 3/8 in
For Axle Dia.
10 mm

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
770 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Beige
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Standards
RoHS, ICWM
Replacement Wheel
Mfr. No. GSPO 65/15K
Caster Temp. Range Available
No
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Wheel Color
Beige
Extended Lead
No
Thread Guards
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Frame Finish
Zinc Plated
Tread Color
Natural Beige
Tread
Standard
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
ESD Conductive
No
Series
LK Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
350 kg
Compatible With
GSPO 65/15K
Load Capacity - Maximum
770 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 9/16 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
