  11. Swivel Plate Caster, Nylon, 4 in., 1540 lb.

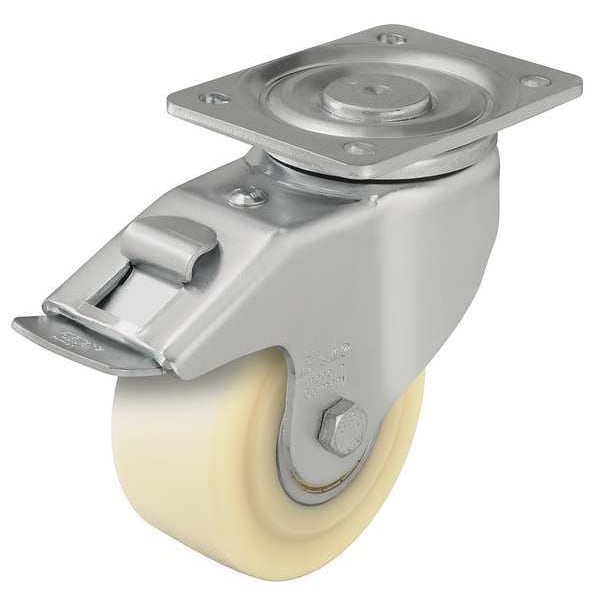

Zoro Select Swivel Plate Caster, Nylon, 4 in., 1540 lb. LH-GSPO 100K-1-FI - main

Swivel Plate Caster, Nylon, 4 in., 1540 lb.

  • Mfr # LH-GSPO 100K-1-FI

  • Zoro # G4581333

product price: $136.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
Total Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LH-GSPO 100K-1-FI
Zoro #
G4581333
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 9/16 in
Mounting Height
5 1/2 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
5-1/2in
Swivel Radius
95 mm
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Width
2.375 in
For Axle Dia.
10 mm
Overall Wheel Width
1 9/16 in
Bolt Hole Spacing - Length
3.156 in

Details

Item
Swivel Caster with Total Lock
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon
Caster Brake Type
Total Lock
Load Rating
1540 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Beige
Wheel Hardness Rating
80 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Thread Guards
No
Caster Temp. Range Available
No
Replacement Wheel
Mfr. No. GSPO 100/20K
Caster Brake Included
Yes
Standards
RoHS, ICWM
Extended Lead
No
Frame Finish
Zinc Plated
Wheel Color
Beige
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Caster Stem Type
No Stem/Plate Included
Includes
Stop-Fix Total-Lock Brake
Tread Color
Natural Beige
Tread
Standard
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Wheel Core Material
Nylon
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Accessories
Optional: RI-04.01 (Directional Lock)
Load Capacity
700 kg
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LH Series
Compatible With
GSPO 100/20K
Load Capacity - Maximum
1,545 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant
Brake Location
Rear
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 1540 lb, Swivel Lock Type Total Lock, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
