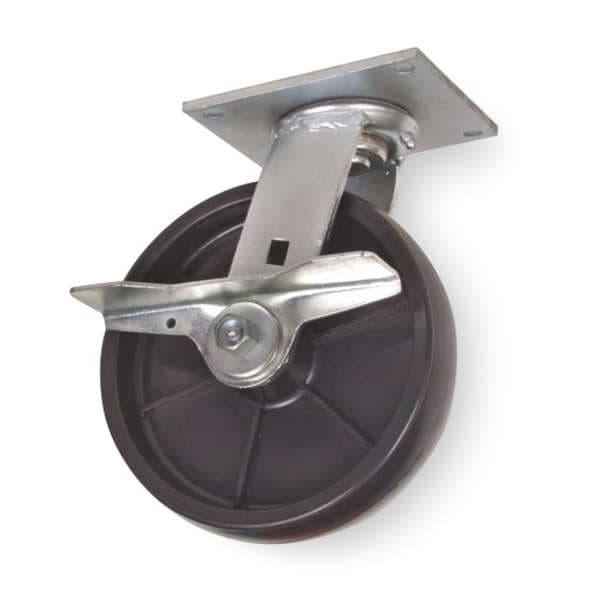

Swivel Plate Caster, Poly, 8 in., 1000 lb.

product price: $14.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Medium-Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Polyolefin
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Stem Dia. No Stem
Caster Plate Size 5" x 5-1/2"
Plate Size 5" x 5-1/2"
Mounting Bolt Dia. 3/8 in
Mounting Plate Size 5 in x 5 1/2 in
Mounting Height 9 1/2 in

Details

Caster Brake Included Yes
Caster Load Rating Range Medium-Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyolefin
Load Rating 1000 lb
Number of Wheels 1
Caster Stem Type No Stem/Plate Included
Caster Product Group Swivel Caster with Brake
Caster Swivel Lock Type No Lock Included
Wheel Color Black
Caster Wheel Bearings Roller
Core Color Black
Caster Core Material Polyolefin
Inside Bolt Hole Spacing 4-1/8 in x 4-1/2 in
Caster Plate Thickness 15/64"
Frame Finish Zinc Plated
Caster Frame Material Steel
Outside Bolt Hole Spacing 4-1/8 in x 4-1/2 in
Item Standard Plate Caster
Plate Caster Bolt Hole Pattern D
Frame Material Steel
Caster Temp. Range Available No
Plate Thickness 15/64"
Caster Raceway Double Ball
Caster Brake Type Side Pedal Brake
Thread Guards No
Durometer 65 Shore D
Caster Plate Hole Pattern D
Non-Marking Yes
Wheel Bearing Type Roller
Number of Mounting Holes 4
Includes Thread Guards No
Load Rating Range 1000 to 2999 lb
Tread Shape Standard
Swivel Raceway Type Double Ball
Mounting Plate Bolt Hole Pattern D
Swivel Lock Type No Lock Included
Swivel Construction Kingpin
Wheel/Tread Hardness Rating Hard
Wheel/Tread Hardness 65 Shore D
Wheel Core Material Plastic
Wheel/Tread Material Polyolefin
Wheel/Tread Color Black
Shop By Closeouts

Description

Swivel, Standard Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Pedal Brake, Tread Shape Standard
