Shop ZORO SELECT

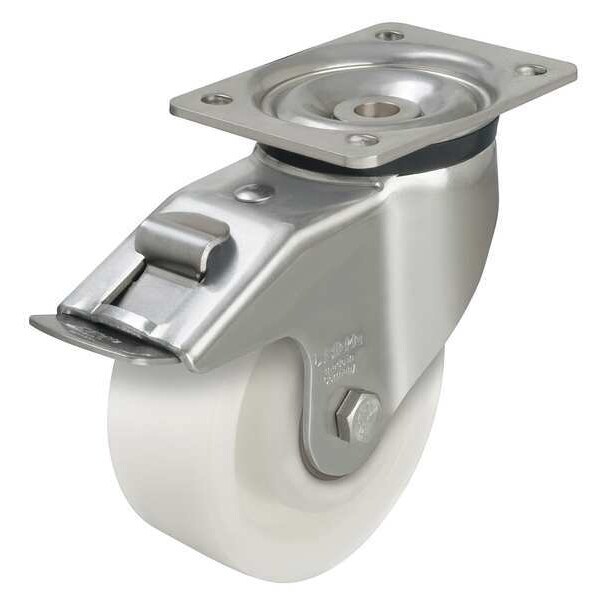

Swivel Plate Caster, Nylon, 5 in., 1650 lb.

  • Mfr # LKX-SPO 127XK-FI

  • Zoro # G6563925

product price:  $323.99
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Frame Finish
Stainless Steel
Overall Height
6-11/16"
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
D
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LKX-SPO 127XK-FI
Zoro #
G6563925
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-11/16"
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Plate Size
4-5/16in x 5-1/2in
Mounting Height
6 11/16 in
Swivel Radius
117.5 mm
For Axle Dia.
12 mm
Mounting Plate Length
4 5/16 in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Thickness
1/8 in
Inside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.969 in

Details

Outside Bolt Hole Spacing
3-5/32 in x 4-9/64 in
Frame Finish
Stainless Steel
Caster Sub-Type
Swivel
Caster Plate Hole Pattern
D
Features
Corrosion Resistant
Load Rating
1650 lb
Inside Bolt Hole Spacing
2-15/16 in x 4-1/8 in
Core Color
White
Caster Frame Material
Stainless Steel
Thread Guards
No
Wheel Color
White
Application
Commercial, Industrial
Caster Stem Type
No Stem/Plate Included
Standards
DIN EN 12595, ISO 14001, ISO 5001, ISO 9001
Caster Temp. Range Available
No
Number of Wheels
1
Item
Plate Caster
Replacement Wheel
Mfr. No. SPO 127/20XK
Caster Brake Included
Yes
Caster Brake Type
Total Lock
Extended Lead
No
Includes
Stop-Fix Total-Lock Brake
System of Measurement
Metric
Tread Color
White
Caster Mounting Type
Plate
Non-Marking
Yes
Tread
Standard
Load Rating Range
Heavy-Duty
Swivel Lock Type
Total Lock
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Nylon
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
ESD Conductive
No
Load Capacity
750 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
LKX Series
Caster Features
Corrosion-Resistant
Compatible With
SPO 127/20XK
Load Capacity - Maximum
1,655 lb
Wheel Hardness Rating
70 Shore D
Brake Location
Rear
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 1650 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
