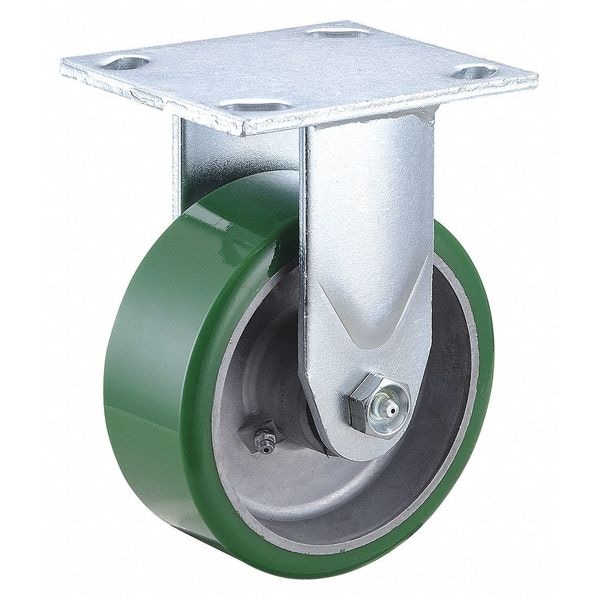

  6. Rgd NSF-Listed Plate Cstr, Polyurethane, 5 in, 1050 lb
Zoro Select Rgd NSF-Listed Plate Cstr, Polyurethane, 5 in, 1050 lb 3G138 - main

Rgd NSF-Listed Plate Cstr, Polyurethane, 5 in, 1050 lb

  • Mfr # 3G138

  • Zoro # G1489022

product price:  $37.99
/ea

Key Features

Standards
ANF, ANSI, ANSI ICWM, NSF
Caster Plate Hole Pattern
B
Caster Brake Included
No
Caster Temp. Range Available
Yes
Caster Sub-Type
Rigid
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3G138
Zoro #
G1489022
UPC #
190735899182
Country of Origin
China

Dimensions

Overall Height
6-1/2in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Wheel Dia.
5 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
7/32in

Details

Standards
ANF, ANSI, ANSI ICWM, NSF
Caster Plate Hole Pattern
B
Caster Brake Included
No
Caster Temp. Range Available
Yes
Caster Sub-Type
Rigid
Number of Wheels
1
Load Rating
1050 lb
Core Color
Silver
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Thread Guards
No
Wheel Color
Green
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Replacement Wheel
Mfr. No. PD0520112
Frame Finish
Zinc Plated
Item
Plate Caster
Caster Frame Material
Steel
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Aluminum
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Wheel Bearing Type
Roller
Swivel Construction
Kingpinless
Tread Shape
Standard
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
1,050 lb
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 1050 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
