  6. Swivel Plate Caster, Polyurethane, 450 lb.

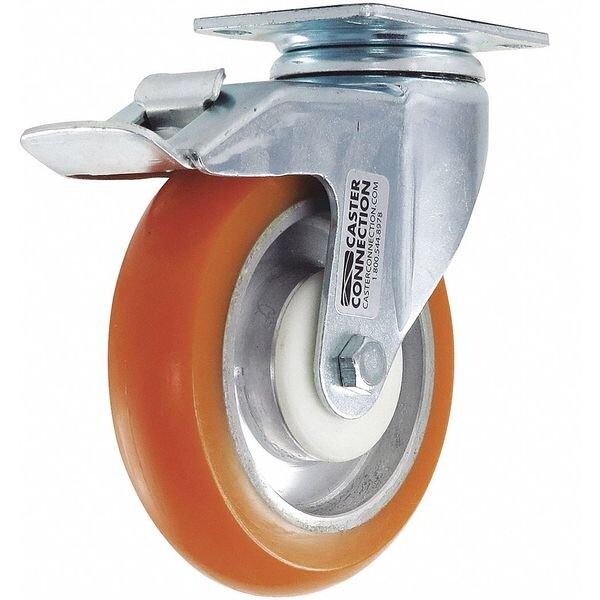

Zoro Select Swivel Plate Caster, Polyurethane, 450 lb. CDP-G-88 - main

Swivel Plate Caster, Polyurethane, 450 lb.

  • Mfr # CDP-G-88

  • Zoro # G2392750

product price:  $60.39
/ea

Key Features

Caster Brake Type
Total Lock
Extended Lead
No
Application
Food Service, Medical
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CDP-G-88
Zoro #
G2392750
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
5 in
Swivel Radius
4 3/4 in
Overall Height
6-1/4in
Wheel Width
1 1/4 in
Mounting Height
6 1/4 in
Mounting Plate Size
2 3/8 in x 3 5/8 in
Mounting Plate Length
3 5/8 in
Bolt Hole Spacing - Width
1.75 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
3/8 in
Mounting Plate Width
2 3/8 in

Details

Caster Brake Type
Total Lock
Extended Lead
No
Application
Food Service, Medical
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Number of Wheels
1
Core Color
Gray
Load Rating
450 lb
Caster Temp. Range Available
No
Thread Guards
No
Replacement Wheel
Mfr. No. CDP-G-83
Caster Brake Included
Yes
Item
Plate Caster
Caster Frame Material
Aluminum
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Wheel Color
Orange
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
C
System of Measurement
Inch
Non-Marking
Yes
Number of Mounting Holes
4
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Aluminum
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Lock Type
Total Lock
Wheel Bearing Type
Ball
Tread Shape
Donut
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Orange
Load Capacity - Maximum
450 lb
Compatible With
CDP-G-83
Wheel Hardness Rating
87 Shore A
Brake Location
Face
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Debris-Resistant, Quiet-Roll

Description

Swivel, Plate Caster, Load Rating 450 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Donut
