  11. Swivel Plate Caster, Rubber, 4 in., 330 lb.
Zoro Select Swivel Plate Caster, Rubber, 4 in., 330 lb. LEX-POEV 100XR-SG - main

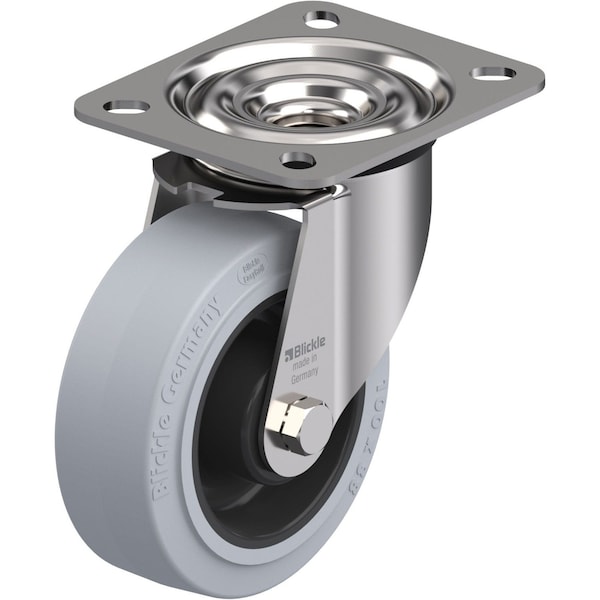

Swivel Plate Caster, Rubber, 4 in., 330 lb.

  • Mfr # LEX-POEV 100XR-SG

  • Zoro # G0385808

product price: $51.29
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LEX-POEV 100XR-SG
Zoro #
G0385808
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
4 15/16 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
4-15/16in
Swivel Radius
86 mm
Overall Wheel Width
1 1/4 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Width
2.375 in
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Length
3 3/8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
No Brake
Load Rating
330 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Replacement Wheel
Mfr. No. POEV 100/12XR-SG
Extended Lead
No
Caster Temp. Range Available
No
Caster Stem Type
No Stem/Plate Included
Wheel Color
Gray
Standards
RoHS, ICWM
Thread Guards
No
Features
Corrosion Resistant
Caster Brake Included
No
Frame Finish
Stainless Steel
Application
Retail, Industrial, Commercial
Tread Color
Gray
Tread
Standard
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy-Duty
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel Core Material
Nylon
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Series
LEX Series
ESD Conductive
No
Load Capacity
150 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Features
Corrosion-Resistant, Debris-Resistant
Load Capacity - Maximum
330 lb
Compatible With
POEV 100/12XR-SG
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
