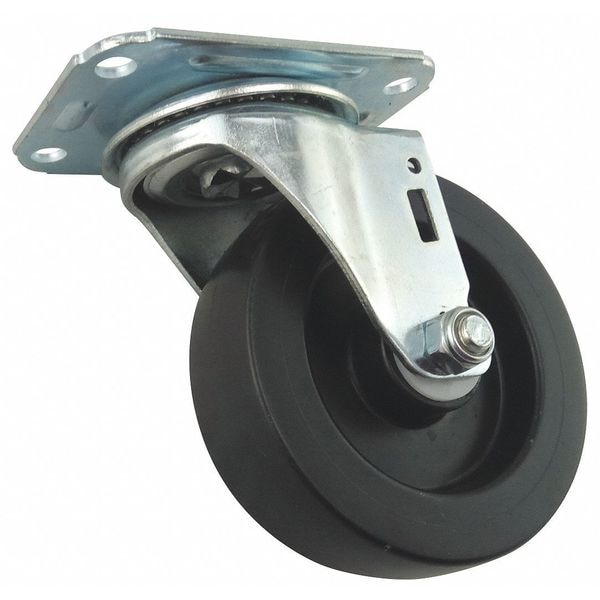

Zoro Select Plate Caster, Swivel, 198 lb., Light-Duty 426A81 - main

Plate Caster, Swivel, 198 lb., Light-Duty

  • Mfr # 426A81

  • Zoro # G6565601

product price:  $6.59
/ea

Key Features

Overall Height
4-11/16in
Caster Temp. Range Available
No
Standards
ANSI, ANSI ICWM
Caster Sub-Type
Swivel
Wheel Dia.
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
426A81
Zoro #
G6565601
UPC #
-
Country of Origin
China

Dimensions

Overall Height
4-11/16in
Wheel Dia.
4 in
Swivel Radius
3 3/8 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Size
2 3/4 in x 3 3/4 in
Mounting Plate Thickness
3/32in

Details

Caster Temp. Range Available
No
Standards
ANSI, ANSI ICWM
Caster Sub-Type
Swivel
Item
Plate Caster
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Thread Guards
No
Extended Lead
No
Number of Wheels
1
Caster Plate Hole Pattern
D
Non-Marking
Yes
Outside Bolt Hole Spacing
1-3/4 in x 3 in
Load Rating
195 lb
Frame Finish
Zinc Plated
Caster Brake Included
No
Core Color
Black
Caster Frame Material
Steel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel Color
Black
Caster Brake Type
No Brake
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polyolefin
Tread Shape
Standard
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
System of Measurement
Inch
Load Capacity - Maximum
195 lb
Wheel Hardness Rating
70 Shore D
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 195 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
