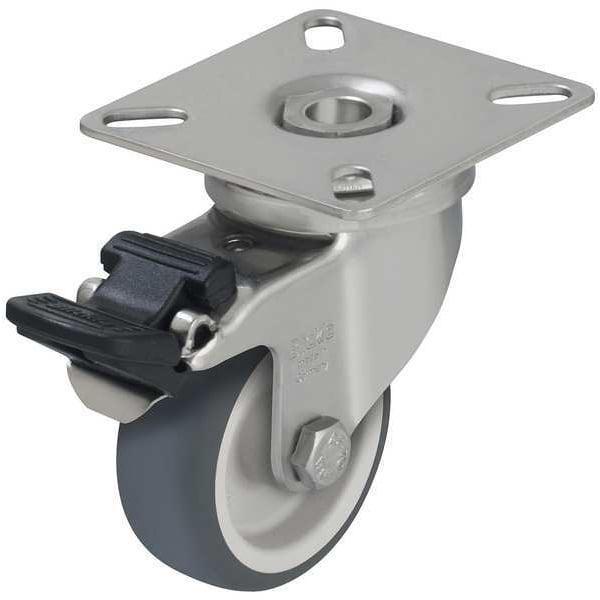

Swivel Plate Caster, Therm Rubber, 2 in., 110 lb.

  • Mfr # LPXA-TPA 50G-FI
  • Zoro # G4584587
product price:
$
43.95
/ea

Key Features

Caster Temp. Range Available
No
Application
Food Service, Medical and Institutional Equipment
Caster Sub-Type
Swivel
Caster Brake Type
Total Lock
Wheel Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LPXA-TPA 50G-FI
Zoro #
G4584587
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
2-13/16"
Wheel Dia.
2 in
Stem Dia.
No Stem
Wheel Width
3/4 in
Mounting Bolt Dia.
7/32 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Height
2 13/16 in
Swivel Radius
50 mm
For Axle Dia.
6 mm
Inside Slot Spacing - Length
38 mm
Overall Wheel Width
3/4 in
Mounting Plate Width
60 mm
Mounting Plate Length
60 mm
Inside Slot Spacing - Width
38 mm
Outside Slot Spacing - Length
48 mm
Outside Slot Spacing - Width
48 mm
Mounting Plate Thickness
3/32 in
Bolt Hole Spacing - Length
1.5 in

Details

Caster Temp. Range Available
No
Application
Food Service, Medical and Institutional Equipment
Caster Sub-Type
Swivel
Caster Brake Type
Total Lock
Wheel Color
Gray
Load Rating
110 lb
Caster Frame Material
Stainless Steel
Standards
DIN EN 12555, ISO 14001, ISO 5001, ISO 9001
Core Color
Gray
Caster Stem Type
No Stem/Plate Included
Item
Plate Caster
Inside Bolt Hole Spacing
1-1/2 in x 1-1/2 in
Outside Bolt Hole Spacing
1-7/8 in x 1-7/8 in
Replacement Wheel
Mfr. No. TPA 50/8G
Thread Guards
No
Caster Plate Hole Pattern
A
Caster Brake Included
Yes
Number of Wheels
1
Frame Finish
Stainless Steel
Extended Lead
No
Caster Mounting Type
Plate
Non-Marking
Yes
Tread
Standard
Includes
Stop-Fix Total-Lock Brake
Tread Color
Gray
System of Measurement
Metric
Swivel Lock Type
Total Lock
Number of Mounting Holes
4
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel Core Material
Polyolefin
Tread Shape
Standard
Wheel Bearing Type
Plain
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
ESD Conductive
No
Series
LPXA Series
Load Capacity
50 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Compatible With
TPA 50/8G
Wheel Hardness Rating
85 Shore A
Load Capacity - Maximum
110 lb
Brake Location
Rear
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel, Plate Caster, Load Rating 110 lb, Swivel Lock Type Total Lock, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
