  6. Swivel Plate Caster, Therm Rubber, 2 in, 110 lb

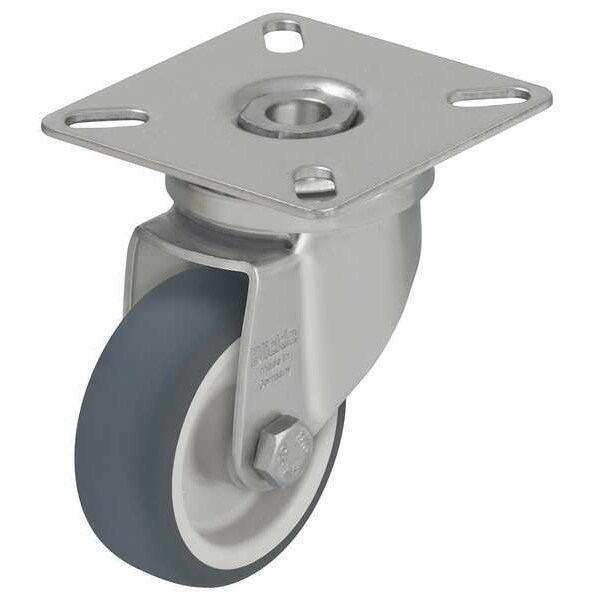

Zoro Select Swivel Plate Caster, Therm Rubber, 2 in, 110 lb LPXA-TPA 50G - main

Swivel Plate Caster, Therm Rubber, 2 in, 110 lb

  • Mfr # LPXA-TPA 50G

  • Zoro # G4541083

product price:  $37.69
/ea

Key Features

System of Measurement
Metric
Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 13/16 in
Load Rating
110 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LPXA-TPA 50G
Zoro #
G4541083
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Bolt Dia.
7/32 in
Overall Height
2-13/16in
Stem Dia.
No Stem
Swivel Radius
50 mm
Outside Slot Spacing - Width
48 mm
Mounting Plate Length
60 mm
Mounting Plate Width
60 mm
For Axle Dia.
6 mm
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Width
38 mm
Mounting Plate Thickness
3/32in
Inside Slot Spacing - Length
38 mm
Overall Wheel Width
3/4 in
Bolt Hole Spacing - Length
1.5 in

Details

Item
Swivel Caster
System of Measurement
Metric
Load Rating
110 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Number of Mounting Holes
4
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Caster Plate Hole Pattern
A
Standards
DIN EN 12554, ISO 14001, ISO 5001, ISO 9001
Caster Brake Included
No
Thread Guards
No
Caster Sub-Type
Swivel
Application
Food Service, Medical and Institutional Equipment
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
No
Extended Lead
No
Wheel Color
Gray
Core Color
Gray
Frame Finish
Stainless Steel
Replacement Wheel
Mfr. No. TPA 50/8G
Caster Frame Material
Stainless Steel
Caster Brake Type
No Brake
Tread
Standard
Tread Color
Gray
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Includes Thread Guards
No
Wheel/Tread Material
Polypropylene/Thermoplastic Rubber Elastomer
Wheel/Tread Color
Gray
Load Capacity
50 kg
Series
LPXA Series
ESD Conductive
No
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
110 lb
Wheel Hardness Rating
85 Shore A
Compatible With
TPA 50/8G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel, Plate Caster, Load Rating 110 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
