  11. Swivel Plate Caster, Therm Rubber, 3 in, 100 lb, D

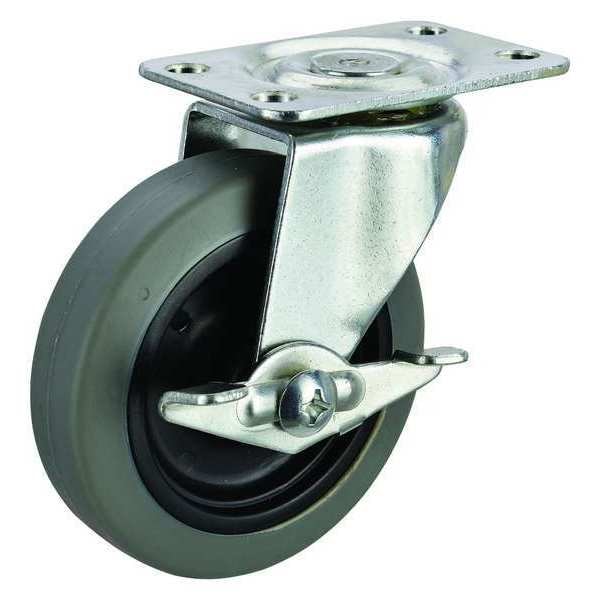

Zoro Select Swivel Plate Caster, Therm Rubber, 3 in, 100 lb, D P5S-RP030G-P-SB-001 - main

Swivel Plate Caster, Therm Rubber, 3 in, 100 lb, D

  • Mfr # P5S-RP030G-P-SB-001

  • Zoro # G0255622

product price: $7.65
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P5S-RP030G-P-SB-001
Zoro #
G0255622
UPC #
190735412732
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
13/16 in
Mounting Height
3 1/2 in
Mounting Plate Size
1-7/8in x 2-5/8in
Mounting Plate Thickness
5/64in
Mounting Bolt Dia.
5/16 in
Overall Height
3-11/16in
Stem Dia.
No Stem
Swivel Radius
2-5/16 in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Length
2.125 in
Mounting Plate Length
1 3/4 in
Overall Wheel Width
13/16 in
Bolt Hole Spacing - Width
0.969 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Load Rating
100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
31/32 in x 2-1/8 in
Inside Bolt Hole Spacing
31/32 in x 2-1/8 in
Caster Plate Hole Pattern
D
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
Yes
Standards
RoHS, ICWM
Features
Corrosion Resistant
Caster Temp. Range Available
No
Thread Guards
No
Wheel Color
Gray
Frame Finish
Zinc Plated
Includes
Pinch Type Brake
Tread
Standard
Tread Color
Gray
Application
Retail, Industrial, Commercial
Includes Thread Guards
No
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Extended Lead
No
Series
P5 Series
Load Capacity
120 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Load Capacity - Maximum
120 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Brake Location
Side
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Swivel, Plate Caster, Load Rating 100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 13/16 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
