Shop ZORO SELECT

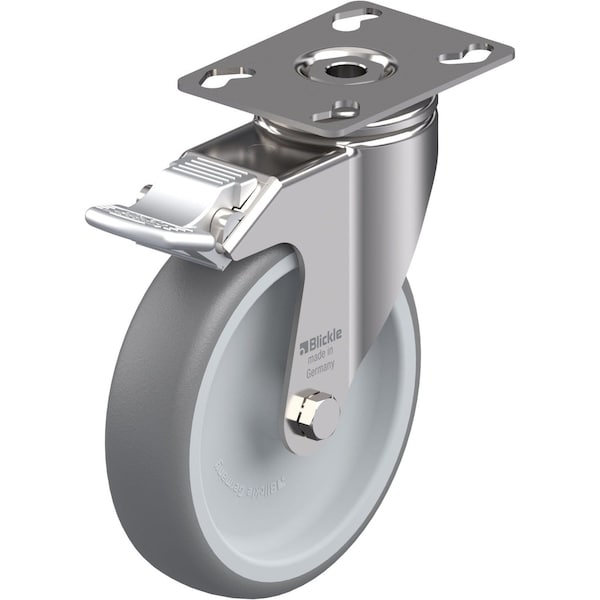

Swivel Plate Caster, Therm Rubber, 5 in, 264 lb

  • Mfr # LKPXA-TPA 126G-FI

  • Zoro # G0385905

product price:
$
61.89
/ea

Key Features

Caster Plate Hole Pattern
B
Extended Lead
No
Load Rating
265 lb
Inside Bolt Hole Spacing
1-3/4 in x 2-15/16 in
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LKPXA-TPA 126G-FI
Zoro #
G0385905
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-3/8"
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
5 in
Stem Dia.
No Stem
Mounting Plate Size
2-5/8in x 3-9/16in
Mounting Height
6 5/8 in
Swivel Radius
102.5 mm
Mounting Plate Width
66 mm
Mounting Plate Thickness
1/8 in
Outside Slot Spacing - Length
75 mm
Inside Slot Spacing - Length
61 mm
Mounting Plate Length
90 mm
Bolt Hole Spacing - Length
2.969 in
Inside Slot Spacing - Width
45 mm
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
51 mm
For Axle Dia.
8 mm

Details

Caster Plate Hole Pattern
B
Extended Lead
No
Load Rating
265 lb
Inside Bolt Hole Spacing
1-3/4 in x 2-15/16 in
Thread Guards
No
Replacement Wheel
Mfr. No. TPA 126/12G
Caster Temp. Range Available
No
Caster Brake Included
Yes
Features
Corrosion Resistant
Outside Bolt Hole Spacing
2 in x 2-13/32 in
Caster Sub-Type
Swivel
Application
Food Service, Medical and Institutional Equipment
Core Color
Gray
Wheel Color
Gray
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
Total Lock
Frame Finish
Stainless Steel
Caster Frame Material
Stainless Steel
Number of Wheels
1
Item
Plate Caster
Standards
DIN EN 12535, ISO 14001, ISO 5001, ISO 9001
System of Measurement
Metric
Non-Marking
Yes
Includes
Stop-Fix Total-Lock Brake
Tread
Standard
Tread Color
Gray
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Swivel Construction
Kingpin
Swivel Lock Type
Total Lock
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Nylon
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Light-Duty
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity
120 kg
ESD Conductive
No
Series
LKPXA Series
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Caster Features
Corrosion-Resistant
Compatible With
TPA 126/12G
Load Capacity - Maximum
660 lb
Wheel Hardness Rating
85 Shore A
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Brake Location
Rear
Wheel Core Type
Solid
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Swivel, Plate Caster, Load Rating 265 lb, Swivel Lock Type Total Lock, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
