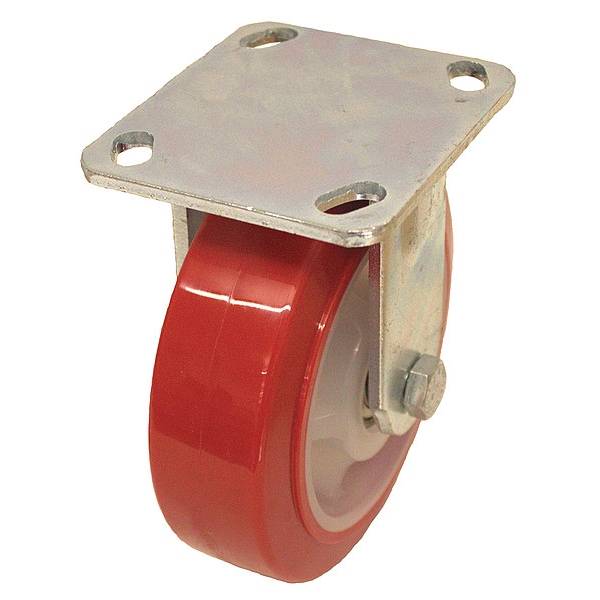

Zoro Select NSF-Listed Plate Caster, 660 lb. Ld Rating, Ball P21R-URPW050K-14 - main

NSF-Listed Plate Caster, 660 lb. Ld Rating, Ball

  • Mfr # P21R-URPW050K-14

  • Zoro # G7279288

product price:  $31.79
/ea

Key Features

Caster Plate Hole Pattern
B
Thread Guards
No
Core Color
White
Wheel Dia.
5 in
Overall Height
6-1/2in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-URPW050K-14
Zoro #
G7279288
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Overall Height
6-1/2in
Swivel Radius
None- Rigid Caster
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4in x 4-1/2in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in

Details

Caster Plate Hole Pattern
B
Thread Guards
No
Item
Rigid Caster
Core Color
White
Caster Temp. Range Available
Yes
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Load Rating
660 lb
Inside Bolt Hole Spacing
3 in x 3 in
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Caster Brake Included
No
Caster Sub-Type
Rigid
Standards
ANSI ICWM, NSF Listed
Wheel Color
Red
Frame Finish
Zinc Plated
Features
Floor Protective
Caster Frame Material
Steel
Replacement Wheel
Mfr. No. P-URPW-050x020/050K
Extended Lead
No
Number of Wheels
1
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
ESD Conductive
No
Series
P21 Series
Load Capacity
660 lb
Tread Color
Red
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity - Maximum
660 lb
Wheel Hardness Rating
55 Shore D
Compatible With
P-URPW-050X020/050K
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
